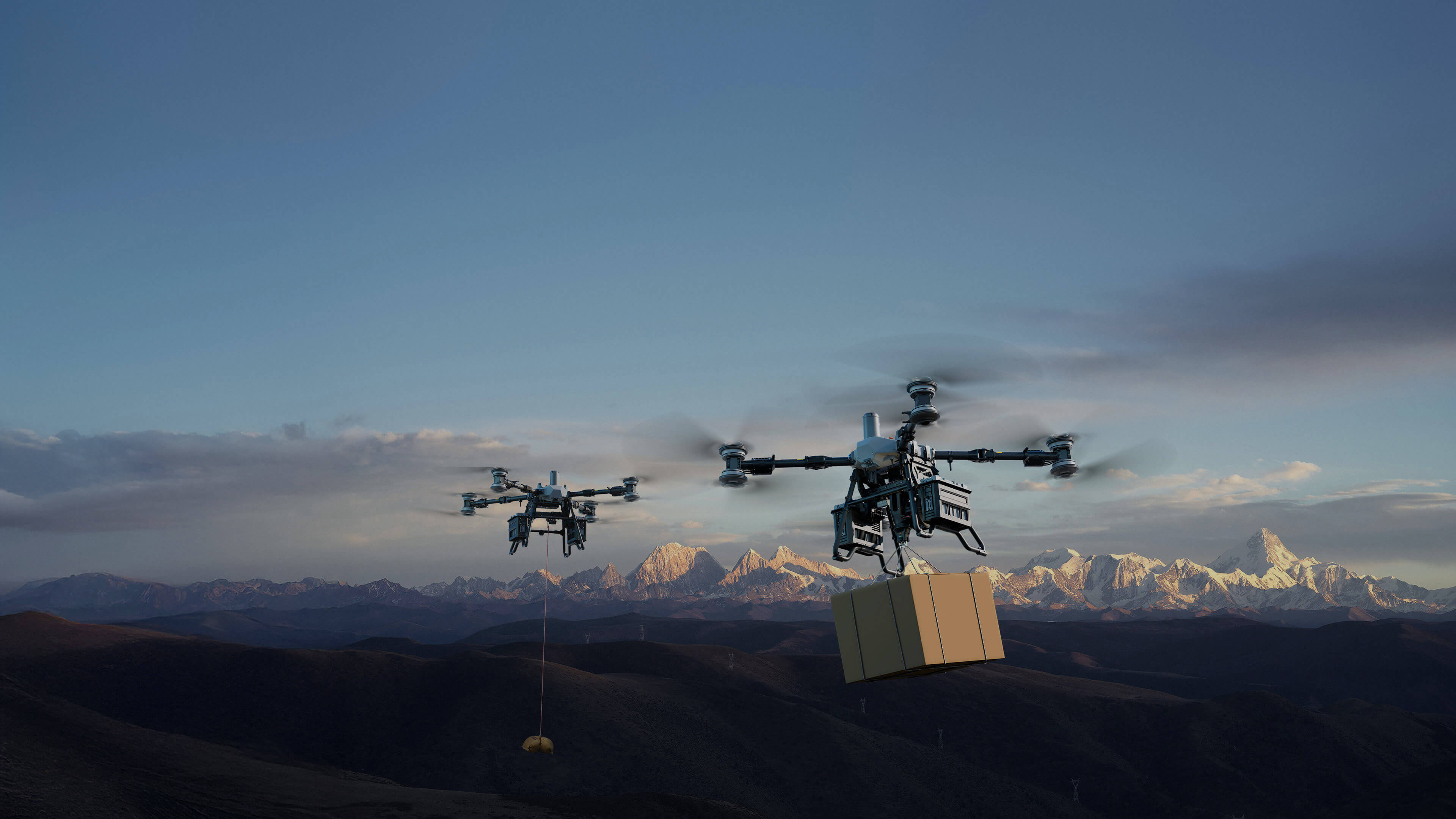

Achieve More Deliveries

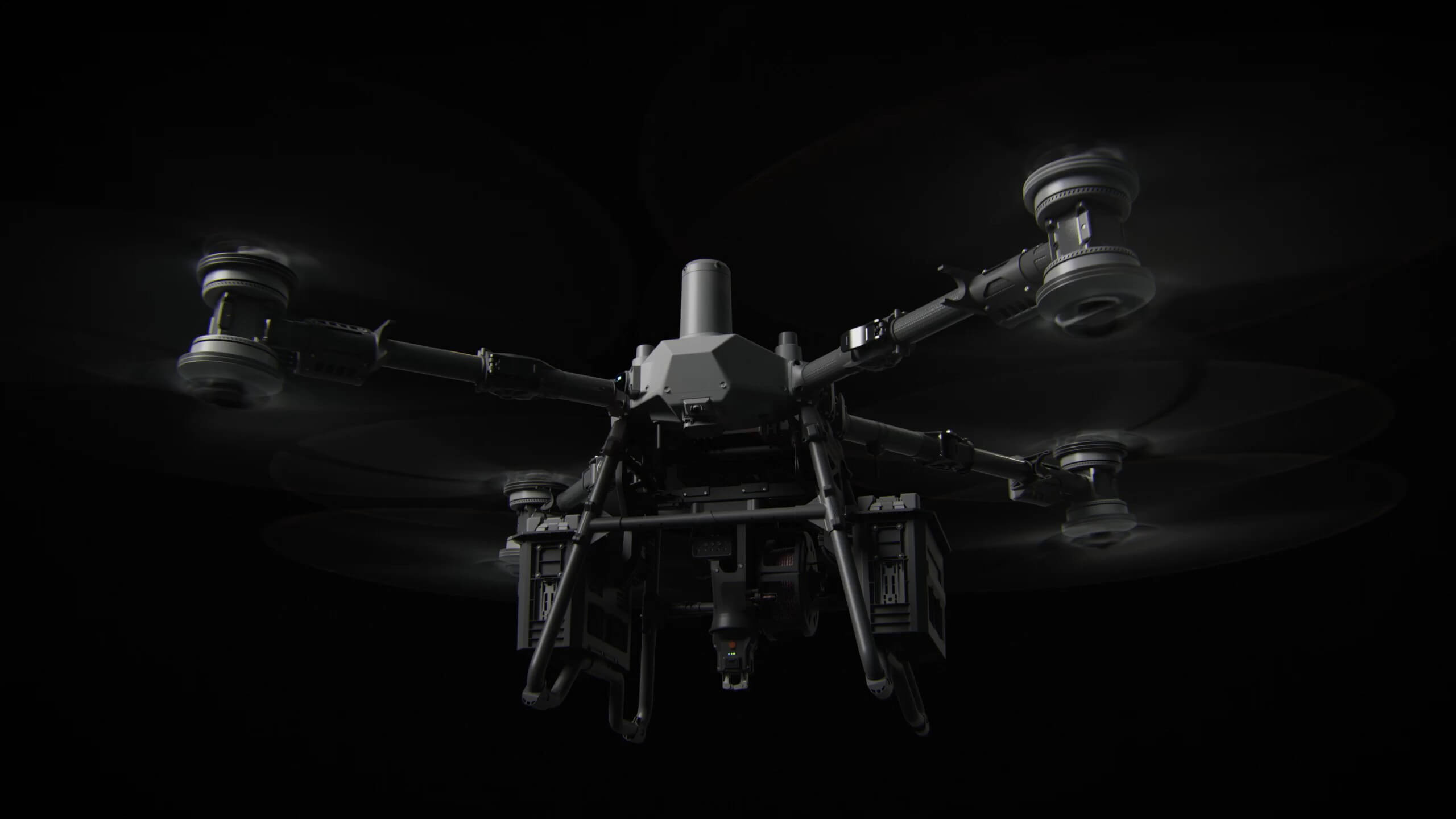

DJI FlyCart 100
DJI FC100 |Dual Battery| Flagship Winch System| Integrated Parachute
" src="
">
Introducing the brand new DJI FC100, 85 kg[1]payload capacity with dual battery, 2 payload systems, integrated seamlessly with a powerful developer ecosystem, redefine professional delivery and break through the operational boundaries. The intelligent and advanced Safety System enables unstoppable delivery from mountains to oceans, unlocking infinite possibilities.
85Kg
Max Payload
with Dual Battery[1]
12Km
Max Flight
Distance with 149.9 kg
Takeoff Weight[2]
82kg
Max Single-Axis Thrust
32%
Enhanced Power Efficiency[3]
Supports Single Battery and Dual Battery Mode
100 kg Max Payload with Single Battery[1]
85 kg Max Payload with Dual Batteries[1]
Coaxial Dual-rotor
Compact size, high load capacity. Powerful propulsion system offers enhanced safety redundancy,
featuring Propeller Stop Protection for added security and reliability.

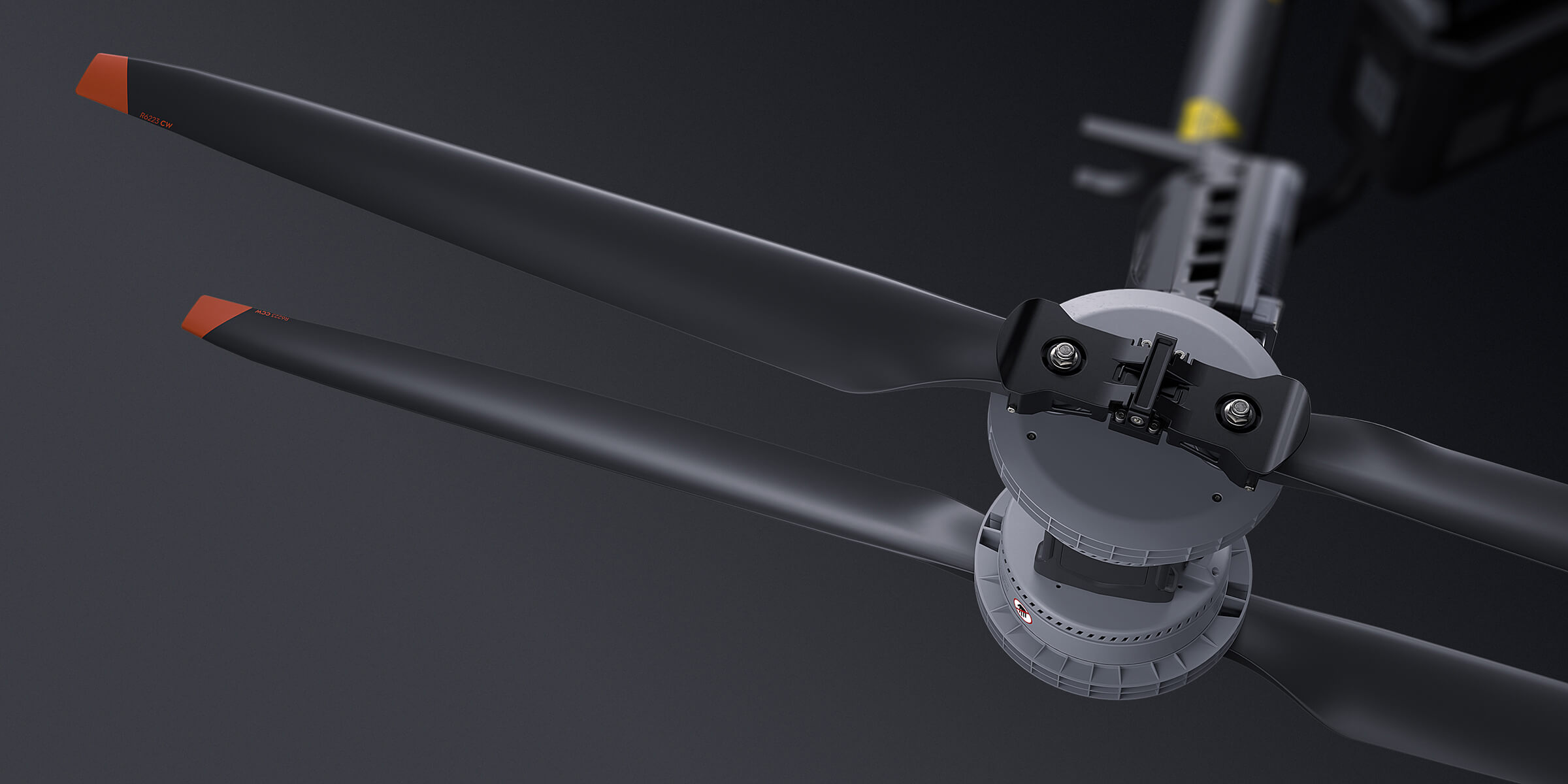

62-inch Carbon Fiber Propellers
Carbon fiber propellers offer greater rigidity and lighter weight, can resist deformation even at high temperatures. With Optimized airfoil and enlarged propeller diameter, energy efficiency is improved. The upper motors are equipped with Propeller Clamps, which reduce propeller vibration for more stable flight.

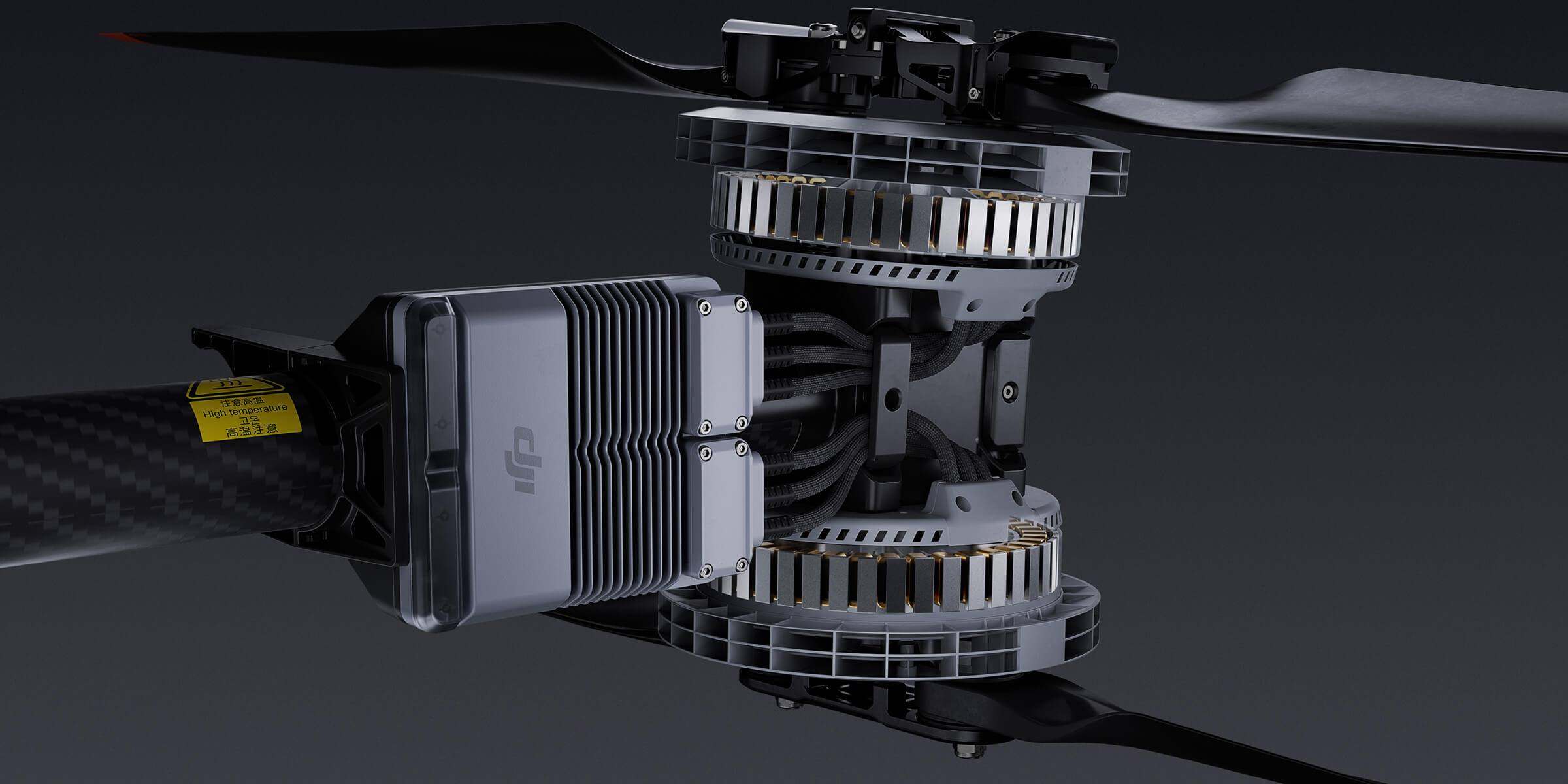

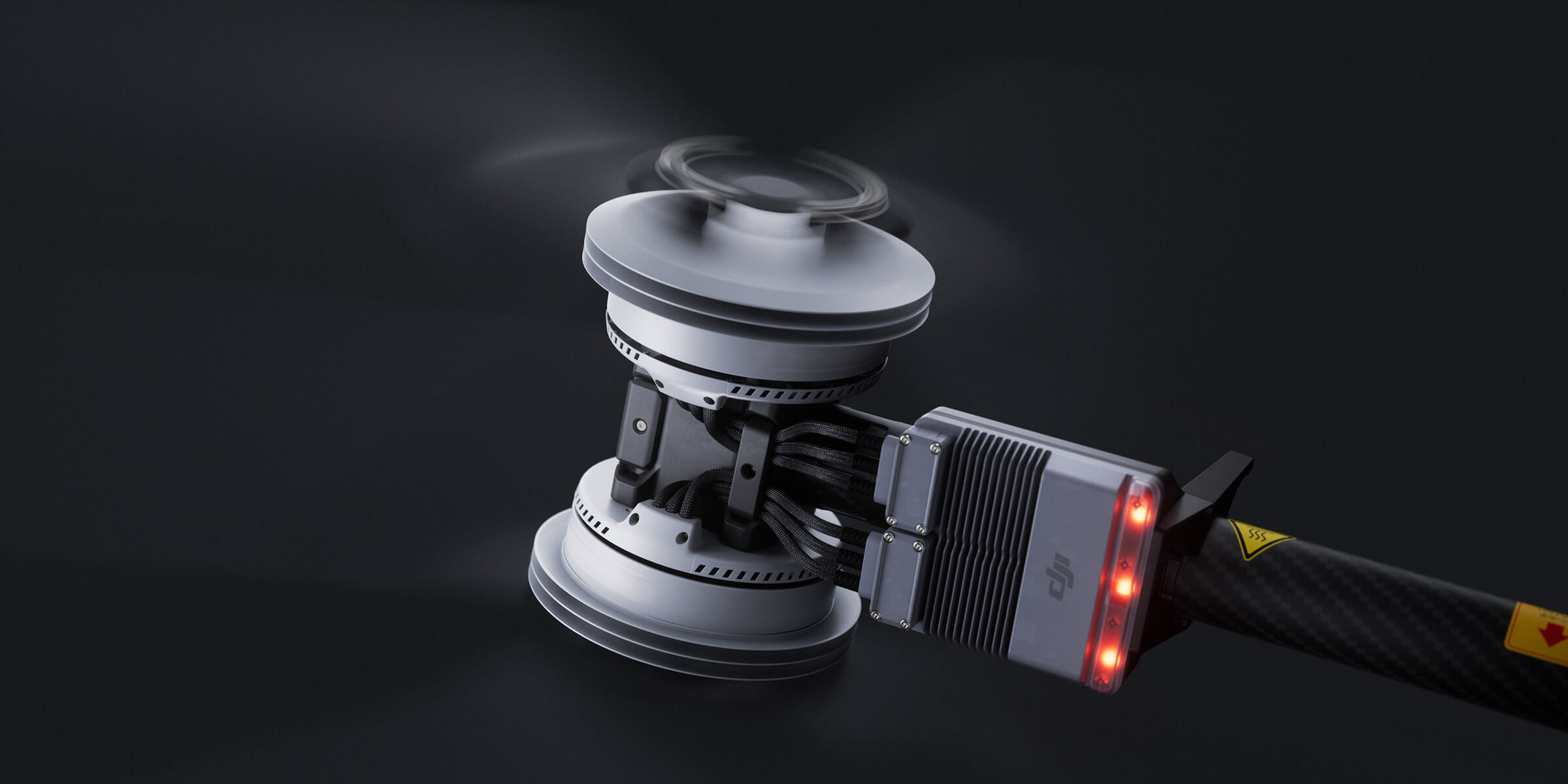

Motor and ESC
Larger motors, more torque. ESC with 420A current ensure stable and reliable operation, providing faster response times.
DJI FlyCart 100

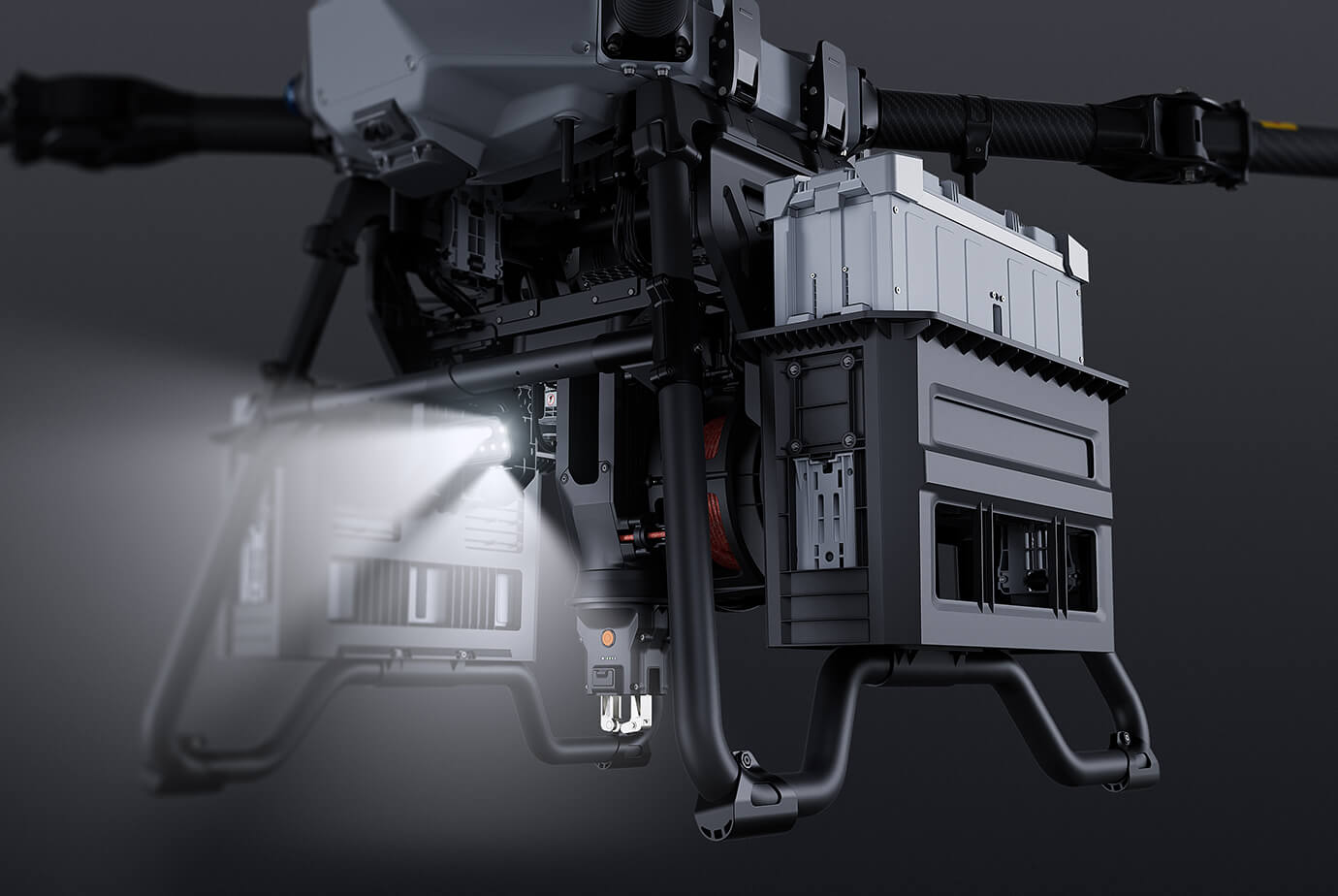

Flagship Winch System
Electric
Hook
Hook
Electric Opening and Closing[4]
Wireless Charging[5]
Convenient and Hassle-Free
Real-Time Weighing
Avoid Overloading, Convenient for Settlement
Audible and Visual Alerts
Safe Loading and Unloading
Winch system offers both automatic and manual release and retrieval options, equipped with a rope length of 30m, it can maintain a retractable speed of 1.2 m/s with heavy loads, ensuring efficient and reliable operation.
Cargo releases automatically upon touchdown, and the hook can be remotely controlled to open, ensuring safe and precise delivery.
The combination of a triaxial force sensor and intelligent algorithms enables minimize cargo swing and improve stability.
For extreme situations when hanging cargo gets trapped or tangled, discard the cable entirely with one click and let the drone free.

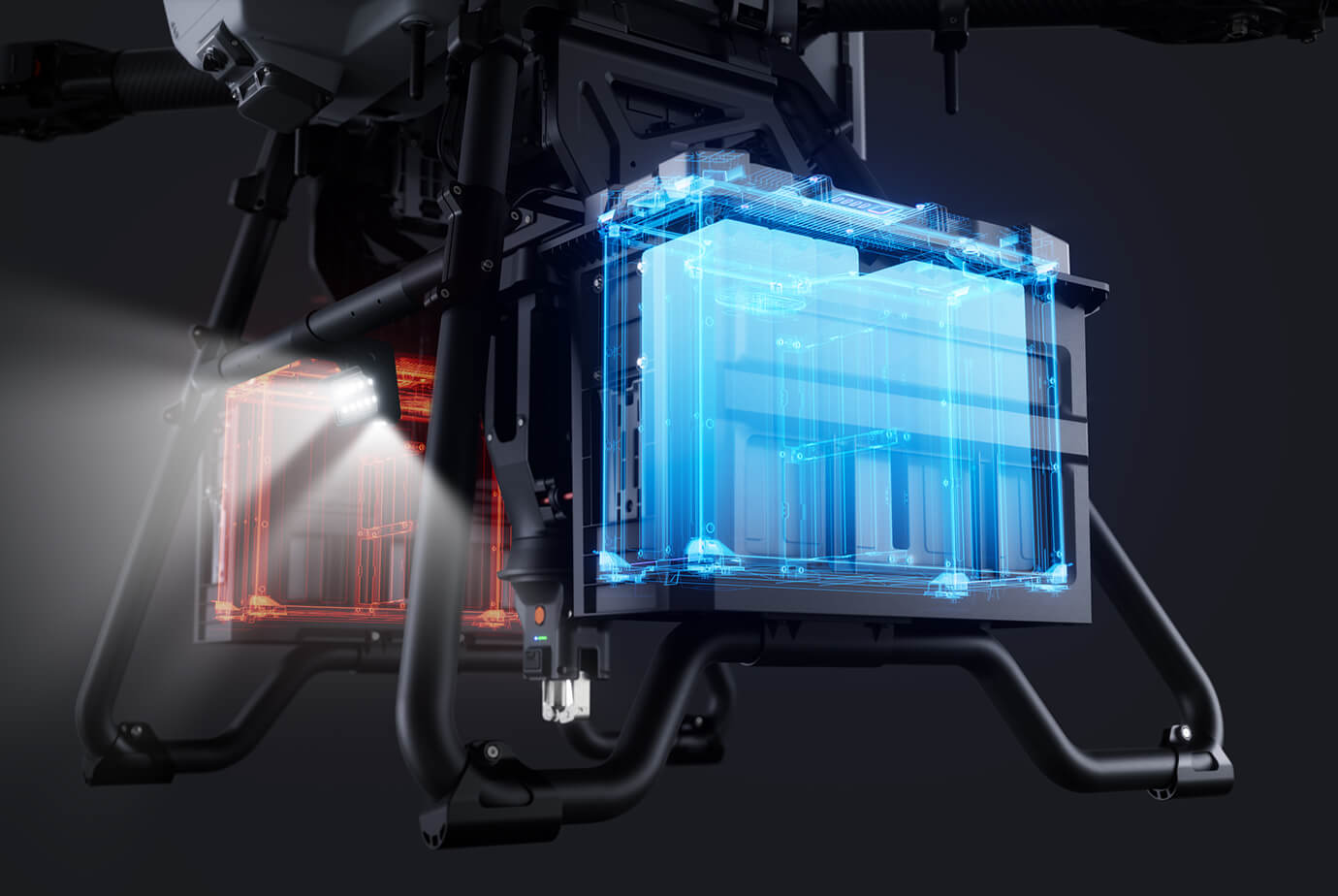

DJI Dual-Battery Lifting System
Auto Balance Control
Minimize swing with a single click for smooth delivery
Rope Cut Escape
Heat and melt the rope with one click to free the drone for safe disentanglement
Real-Time Weighing
Avoid overloading, convenient for settlement
Safety System
Deliver with Ease in Complex Environments

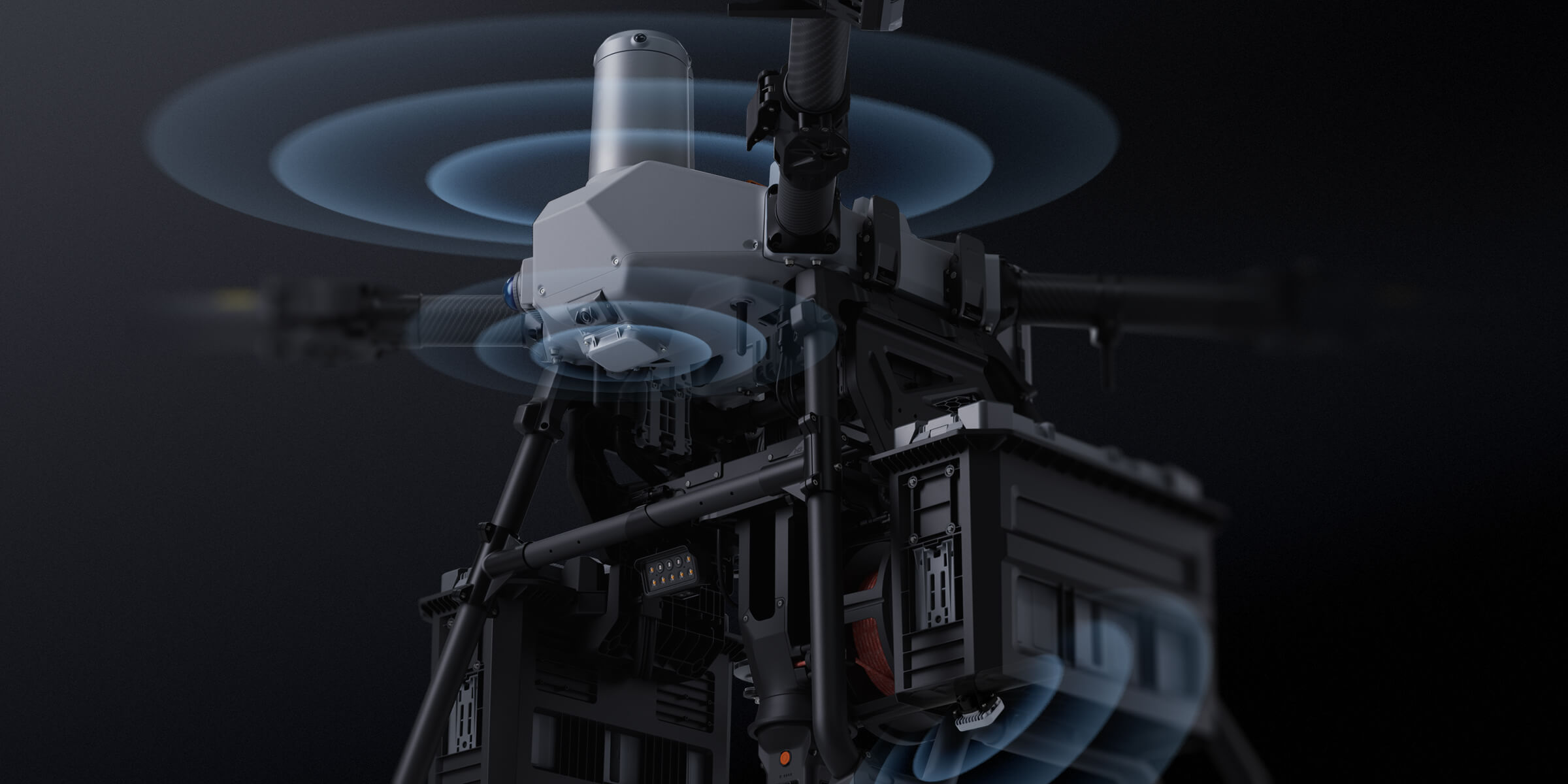

DJI FC100 Intelligent Safety System, equipped with new LiDAR, Millimeter-Wave Radar[6], and Penta-Vision System. These features enable comprehensive environment awareness, allowing for precise obstable detection[7].

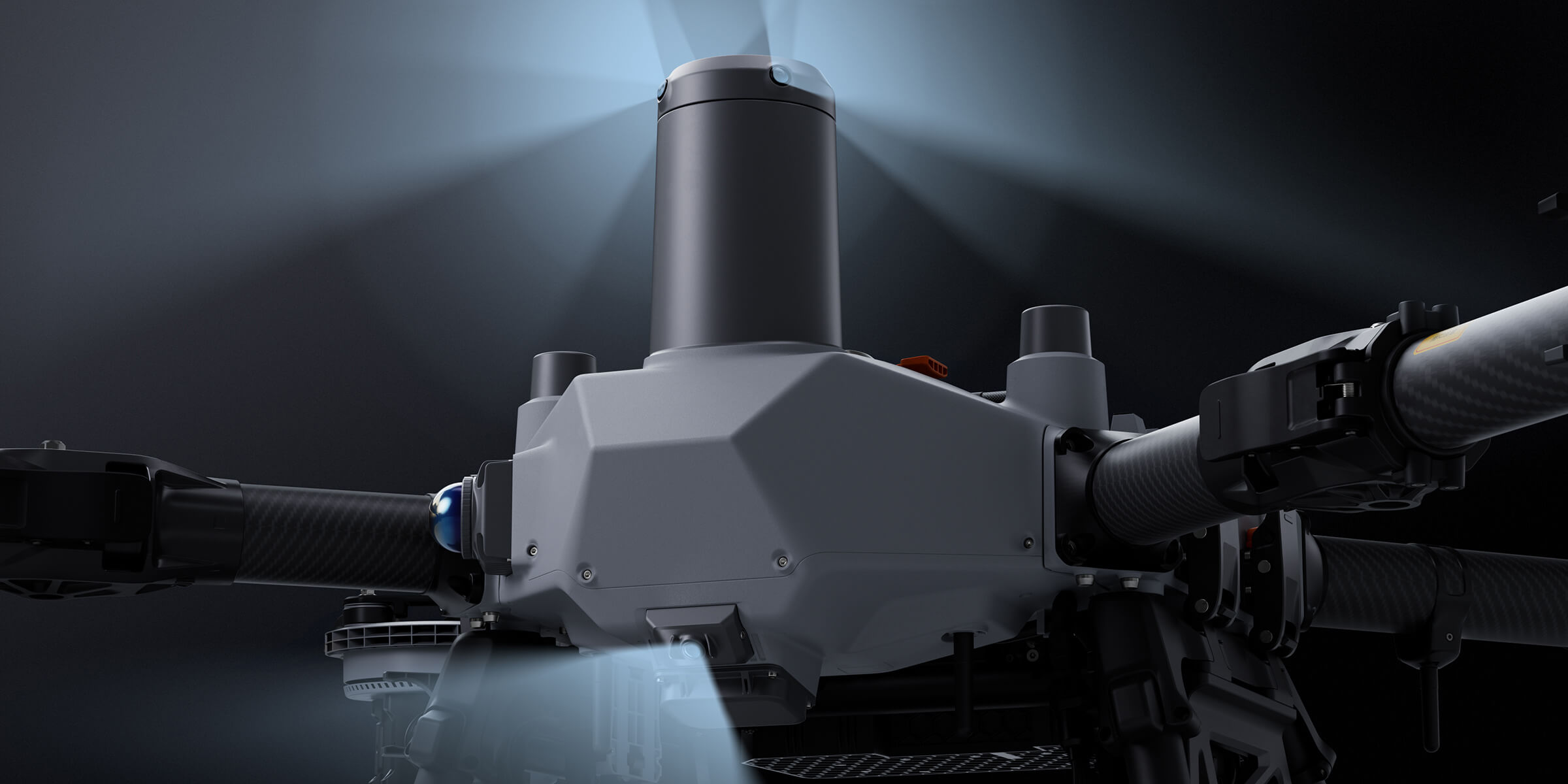

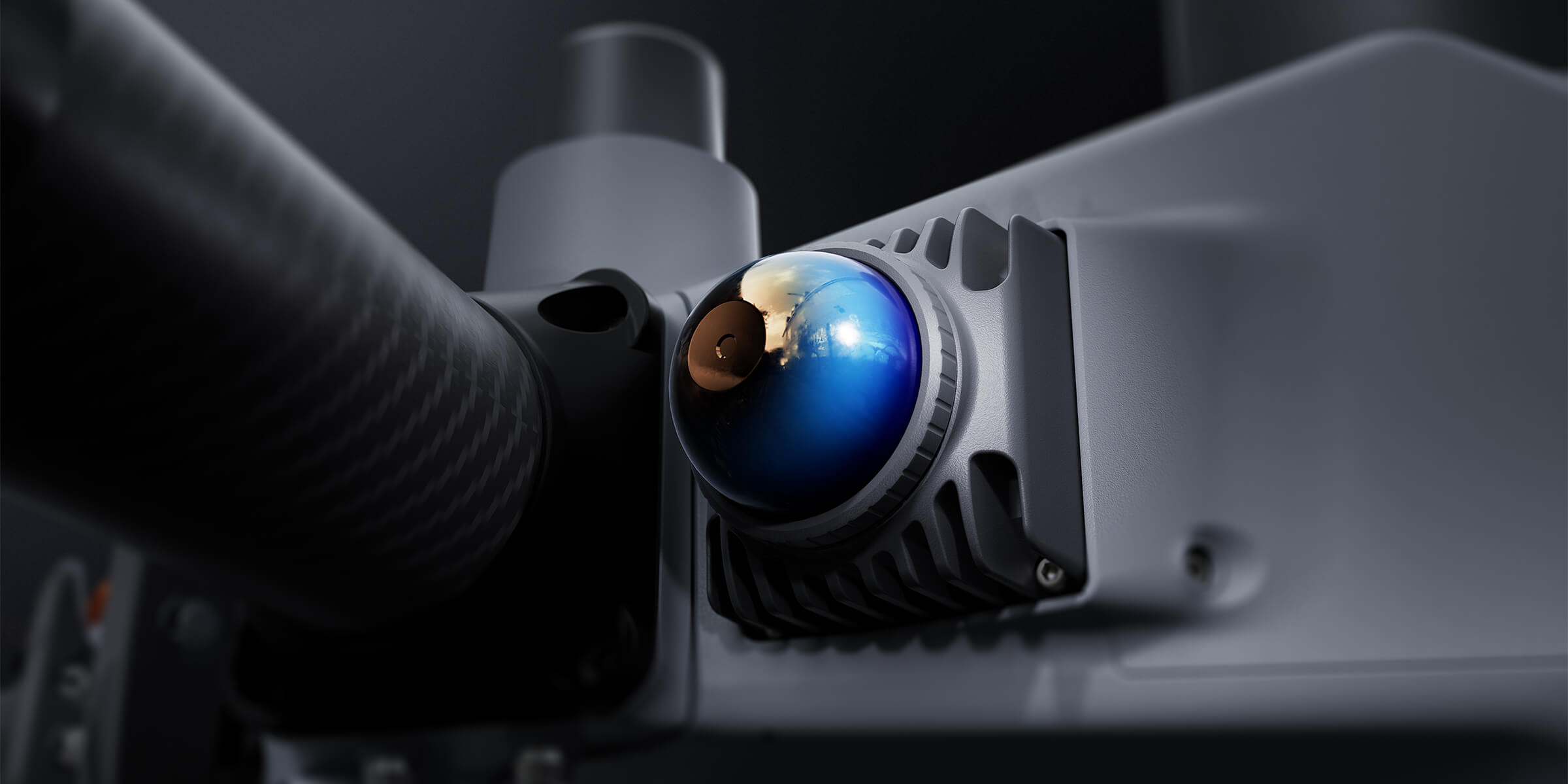

LiDAR
Capable of capturing dense spatial point cloud up to 300,000 points per second, providing a detailed view of complex terrains. It can capture obstacle more clearly than FPV during nighttime operations.

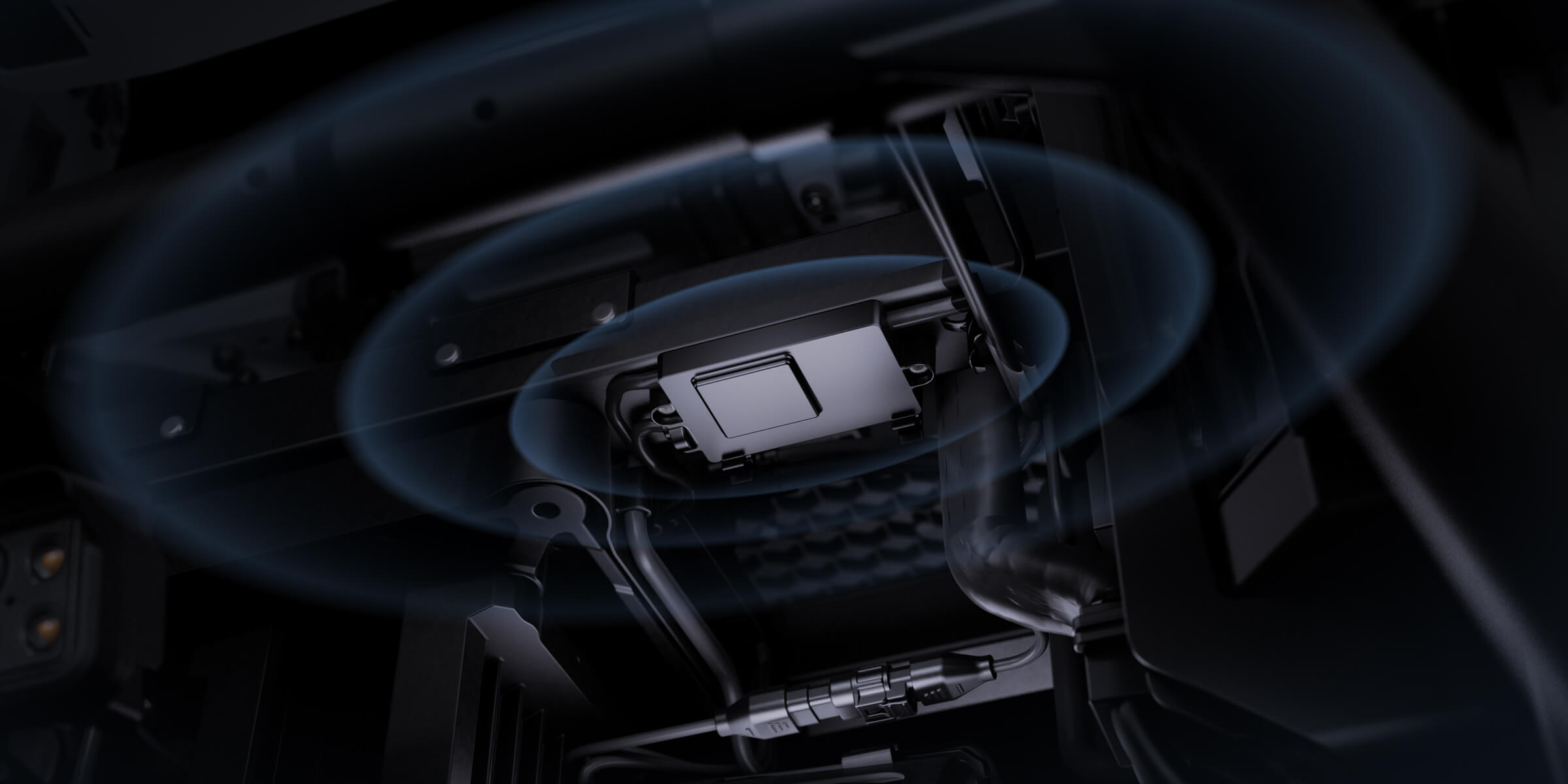

Millimeter-Wave Radar
The front radar performs 5,000 vertical scans per second combined with 360° horizontal mechanical rotation scanning, along with a down radar and a rear radar offering a more comprehensive detection range.
Penta-Vision System
The quad-vision system, pairing with an FPV low-light full-color camera, facilitates unrestricted viewing of flight scenes in front, rear, left, right, and underneath to detect obstacles more intelligently.

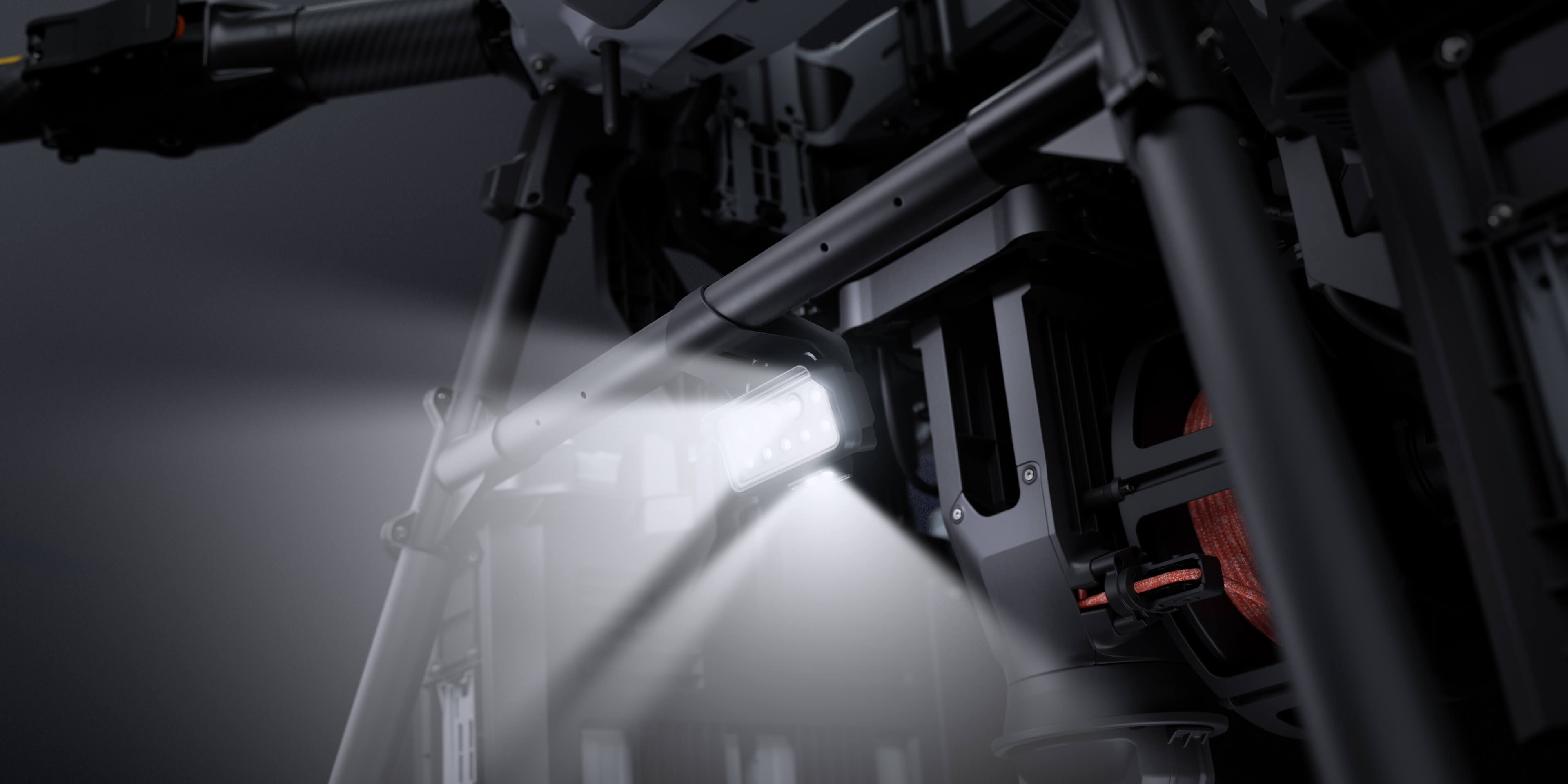

Night Navigation Light
Newly added front-facing high & low beams and downward supplemental light, ensuring safer nighttime operations.
DJI AirSense[8]
A built-in ADS-B in detects and warns nearby crewed aircraft.
Comprehensive Protection for Entire Operation
From takeoff to landing, from routine to emergency situations, DJI FC100 provides comprehensive protection for personnel, drones, and cargo cross all scenes.
During takeoff and landing, DJI FC100 supports AR pedestrian and vehicle detection. Besides, reture-to-home mode activates landing point projection for enhanced touchdown guidance and safety.
Innovative obstacle avoidance algorithms ensure the aircraft and its cargo can avoid obstacles, effectively minimizing the risk of entanglement in complex scenarios.
Innovative obstacle avoidance algorithms ensure the aircraft and its cargo can avoid obstacles, effectively minimizing the risk of entanglement in complex scenarios.
Newly supports No-roll Flight, improving crosswind stability and enhancing fault-tolerant control performance in the event of power loss.
Integrated Parachute
The integrated parachute features multi-redundancy and can deploy at low altitude under maximum takeoff weight conditions, which can effectively slow down the aircraft's touchdown speed and minimize risk to people and property.
High-performance Canopy
corrosion-resistant, low air permeability
Independent Control
Independent power supply, independent storage
Multiple Protection
Intelligent power-on self check, propellers stop rotation before parachate opening
Safety and Reliablity
Touchdown speed can be reduced to 7 m/s[10]
Deliver Beyond Limits
DJI FC100 underwent multiple reliability tests, such as high and low temperature operation tests, wind tunnel tests, winch release and retrieve tests, electric hook opening and closing tests, and parachute opening tests. Forged through rigorous trials, the drone can fly in extreme conditions.
6000m
Max Flight Altitude[11]
12m/s
Max Wind Speed Resistance[12]
IP55
Ingress Protection Rating[13]
-20° to 40° C
Operating Temperature[14]
DB2160 Intelligent Flight Battery
Ultra-Fast Charging
High Battery Capacity
Triple Air-Channel Cooling Design
Multiple Charging Equipments,
Matching Various Charging Scenes.
Accessories of power system vary between different countries.
Please contact the authorized DJI dealers at your location for details.
Remote Controller and Video Transmission
Effortless Handling, Stable Transmission
DJI RC Plus 2 features a 7-inch high-brightness screen and supports Dual Controller Mode[18], allowing two pilots to conveniently transfer control permissions to meet diverse operation requirements.
IP54
Ingress Protection Rating
Water and Dust resistant
-20° to 50° C
Operating temperature
withstands extreme weather conditions, enabling day and night operation
7-inch
High-brightness Large Screen
Peaking brightness of 1,400 nits, clear even in strong light
The upgraded O4 video transmission ensures constant signal availability and smoother videos.
Optional DJI Cellular Dongle Kit, when the O4 Video Transmission signal encounters interference but the mobile network remains strong, it can be automatically switched to mobile network transmission. Effortlessly manage complex scenarios, such as navigating mountainous obstructions.
When the signal is interfered and there is no mobile network coverage, the relay function of the D-RTK3 Multifunctional Station[21] ensures smooth operation.
Two pilots can control one aircraft. When the DJI FC100 is connected to two remote controllers simultaneously, both controllers have full control and video transmission capabilities. The feature allows primary and secondary pilots to switch and adjust the control to the drone in a long flight.

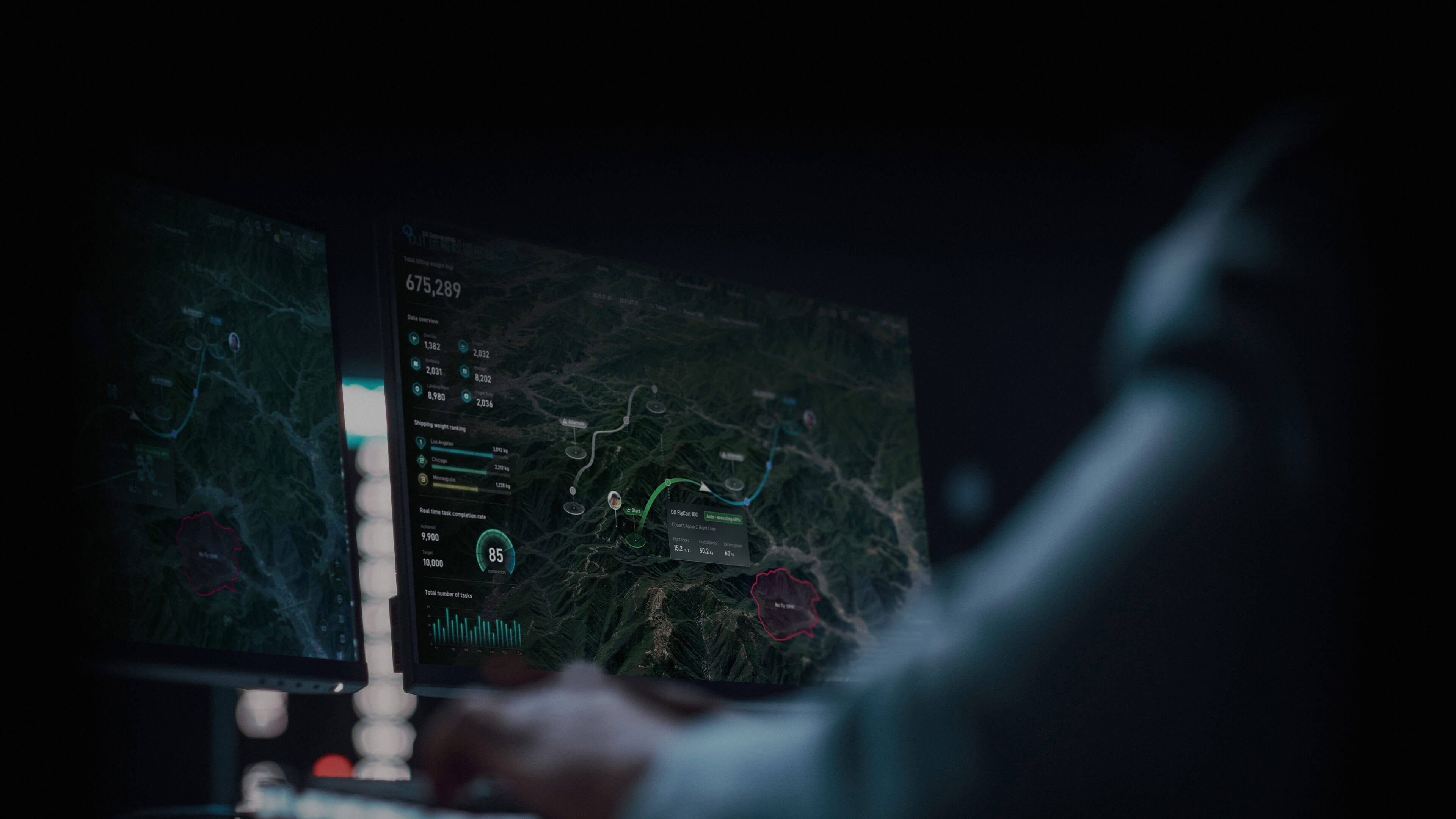

DJI Delivery App
Simple, Yet Extraordinary.
One Touch, Instant Access.
The all-new DJI Delivery App is designed for delivery, featuring a streamlined interface and enhanced functionality. It clearly displays the drone's real-time flight status and cargo transport details. New features like A-B Route Operation Mode and AR Display significantly boost operational efficiency.
Tap-to-Fly: Freedom to choose destinations, simplicity to arrive.
After configuring the loading point A and unloading point B with a remote controller equipped with an RTK module, these settings can be synchronized to the pilot's remote controller. The pilot can then use AR projection to quickly position the point A and point B.
The quad-vision system, combined with an FPV low-light full-color camera, enables simultaneous monitoring of the forward flight environment and downward cargo status, offering a more comprehensive view of the flight. With the addition of AR flight route and AR obstacle detection, flights are made significantly safer.
Preset the waypoint actions, enabling automatic completion of deliver tasks even in disconnected scenes.
Operation
Planning
Efficient Operations
Operation
Status
Comprehensive Overview
Team
Resources
Centralized Management
Intelligent
Warning
Safety Proection
Application Scenarios
A Brand New Ecosystem, Ready to Shine
DJI FC100 supports PSDK, a high-power interface, and new DeliveryHub Sync 2.0, opening up more possibilities beyond delivery.
DB2160 Intelligent Flight Battery
Ultra-Fast Charging
High Battery Capacity
Triple Air-Channel Cooling Design
Practical accessories
-

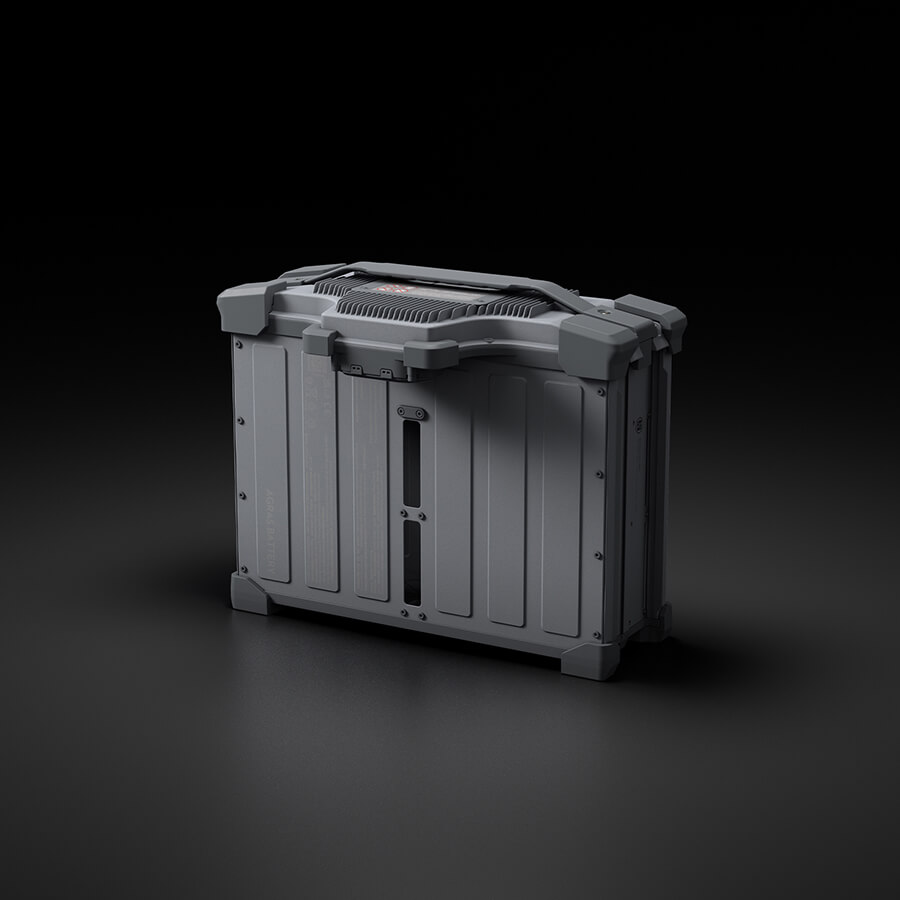

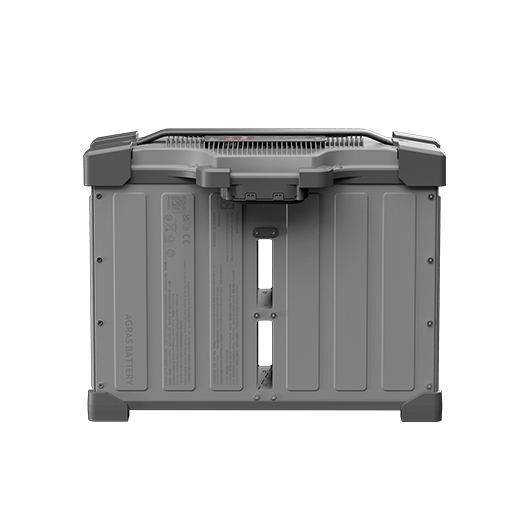

DB2160 Intelligent Flight Battery
41 Ah, offers ultra-Fast charge, triple air-channel cooling design
-

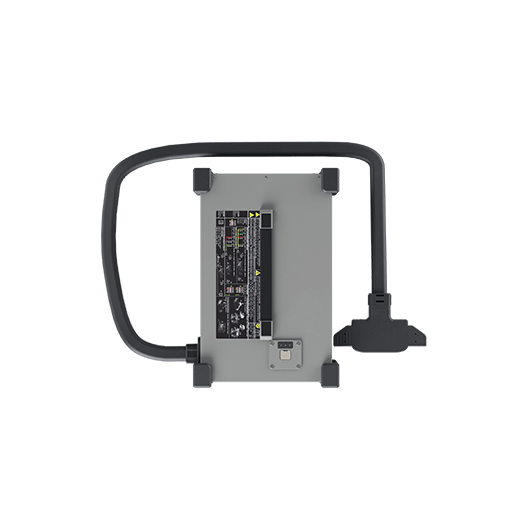

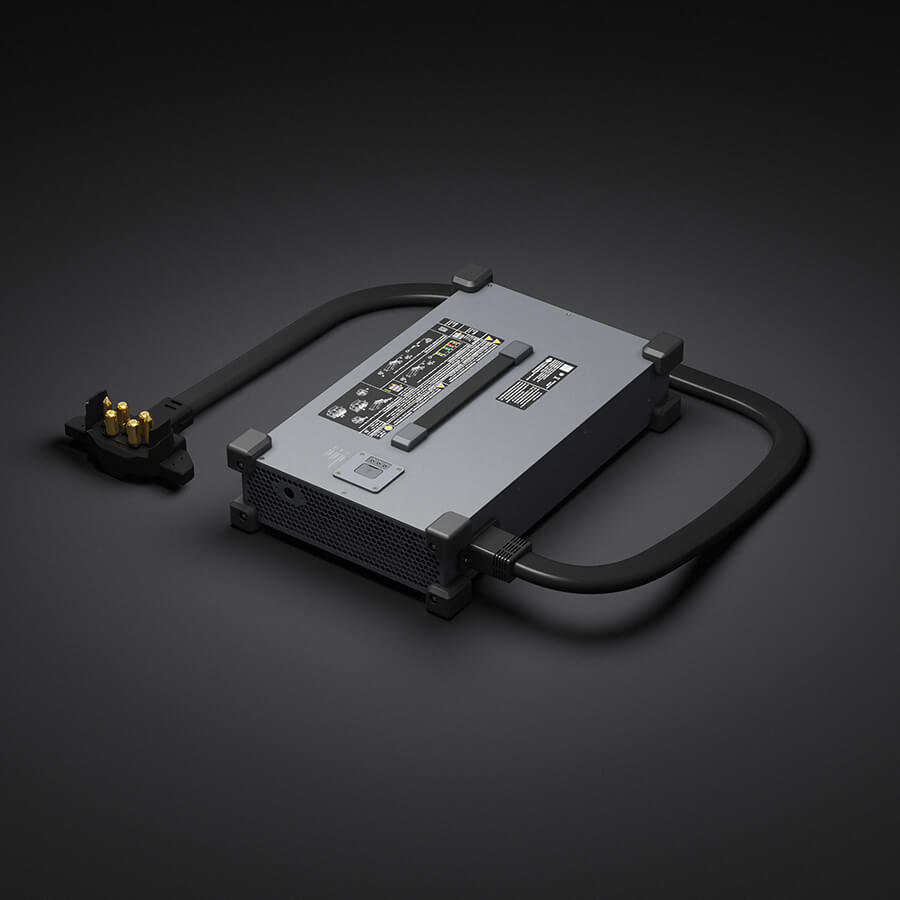

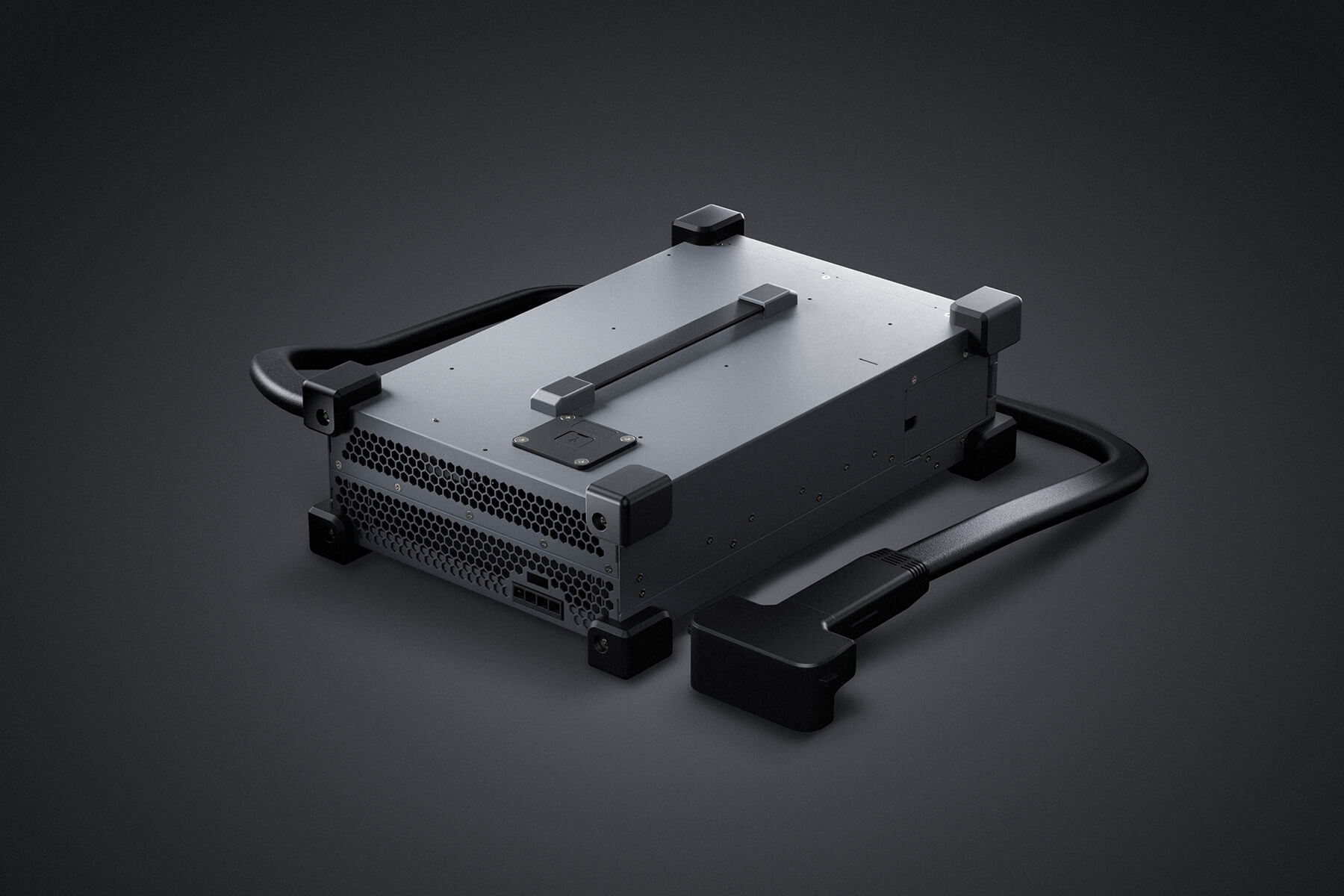

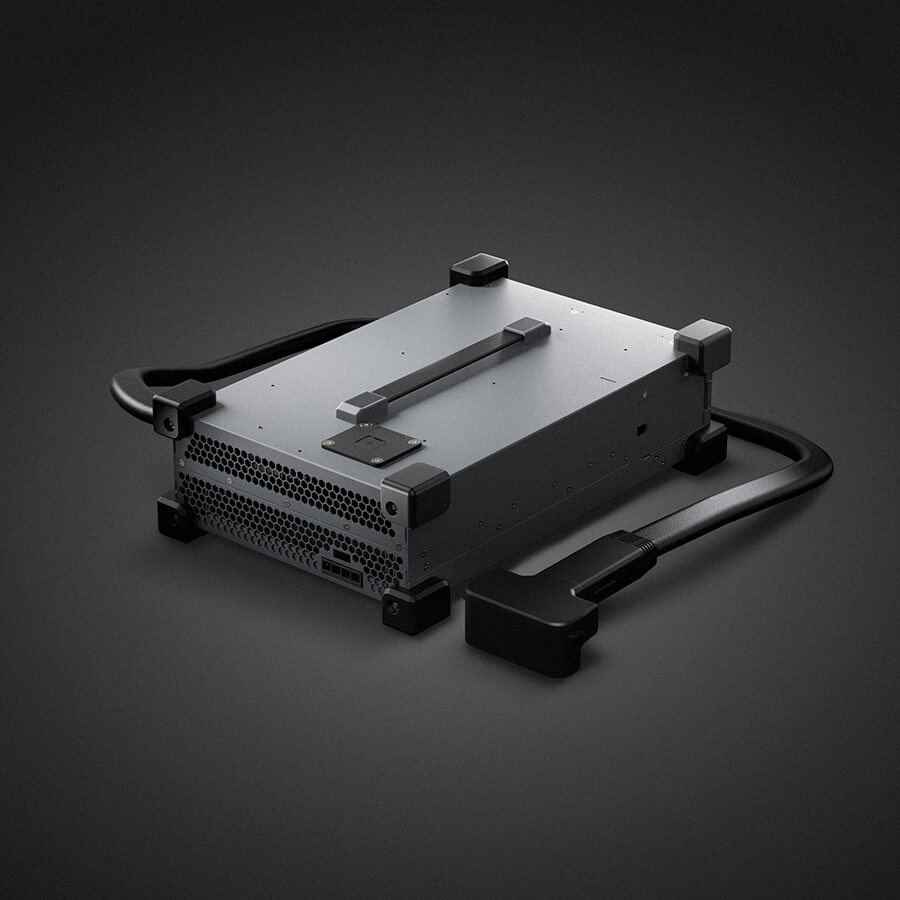

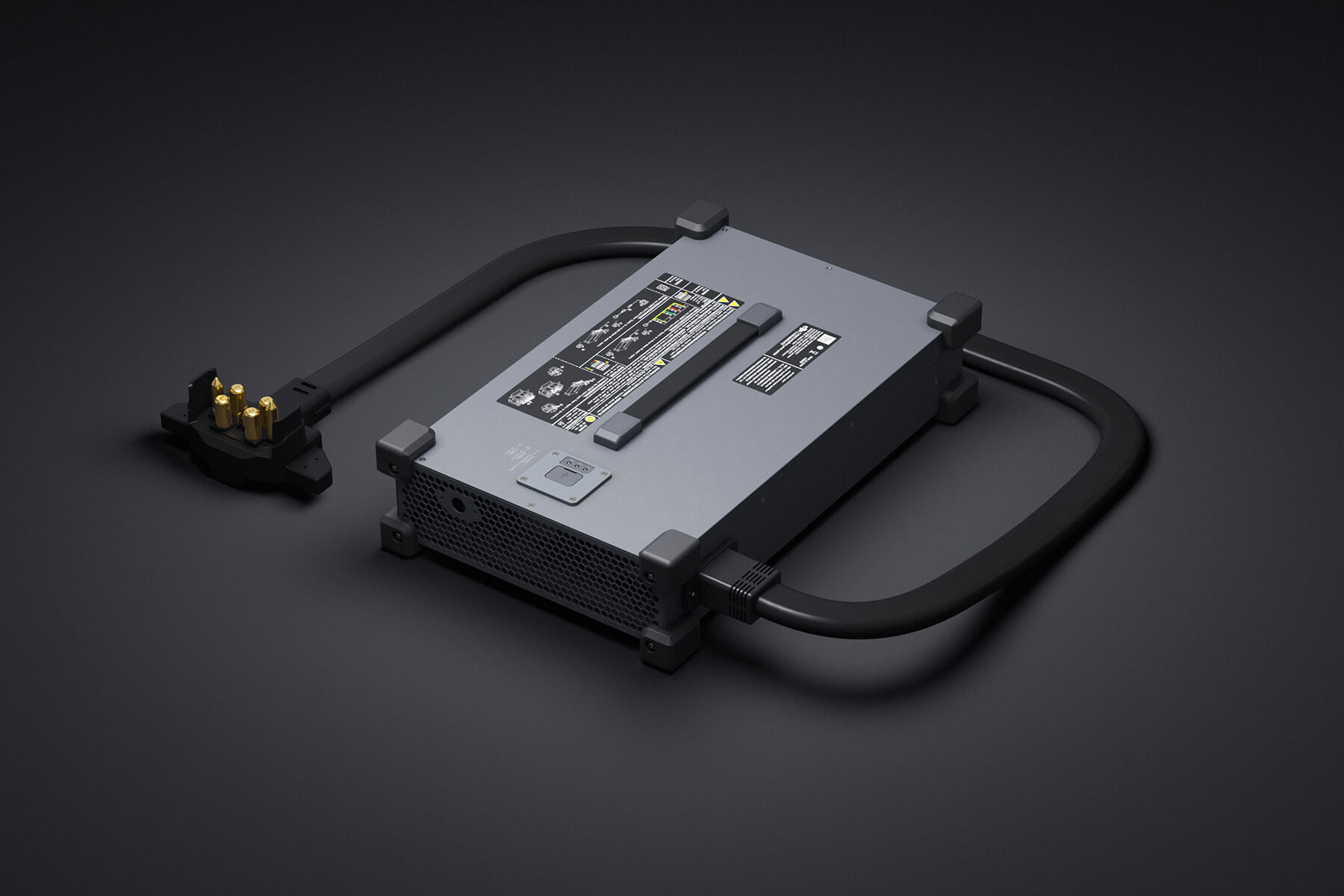

C10000 Intelligent Power Supply
Supports Single-phase power 110V-120V input, and offers a maximum charging power of 9000W fast charging
-

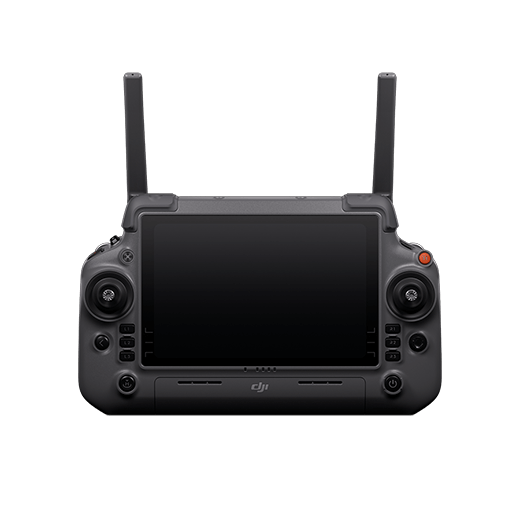

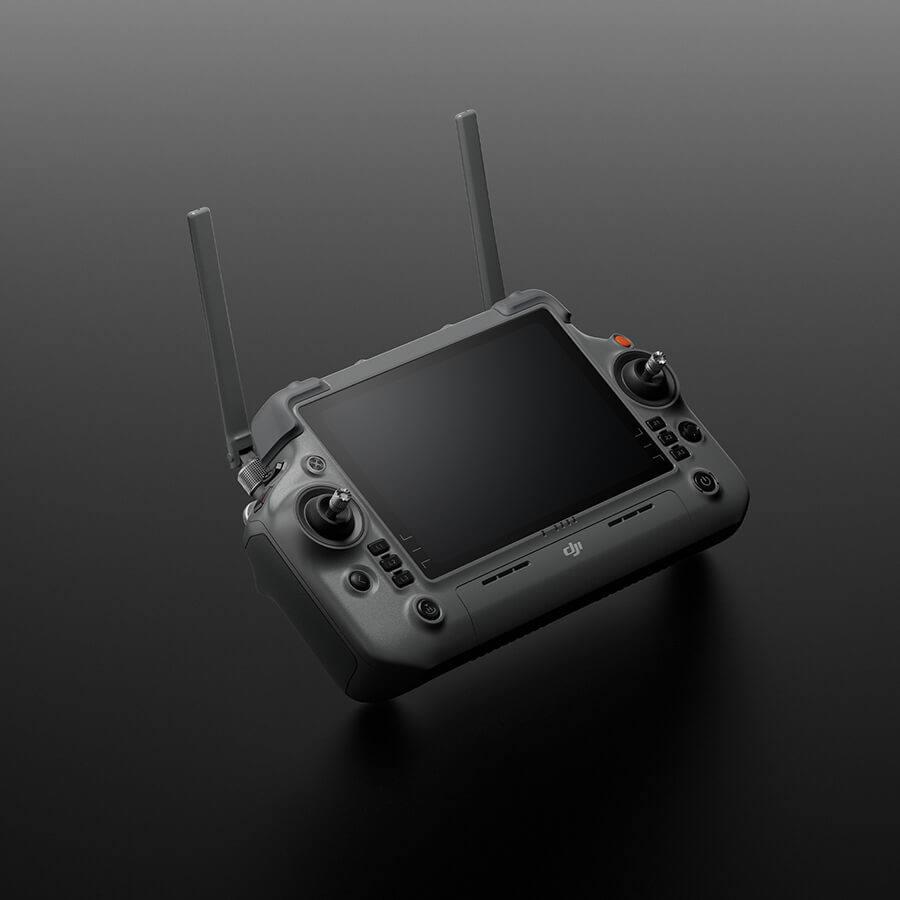

DJI RC Plus 2
7-inch high-brightness screen up to 1,400 nits, with ample buttons and Smooth handling.
-

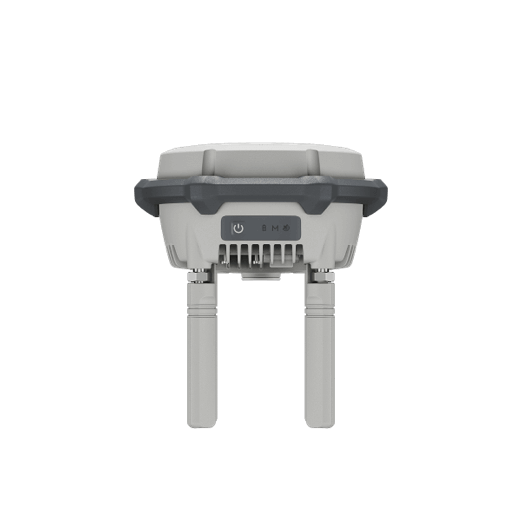

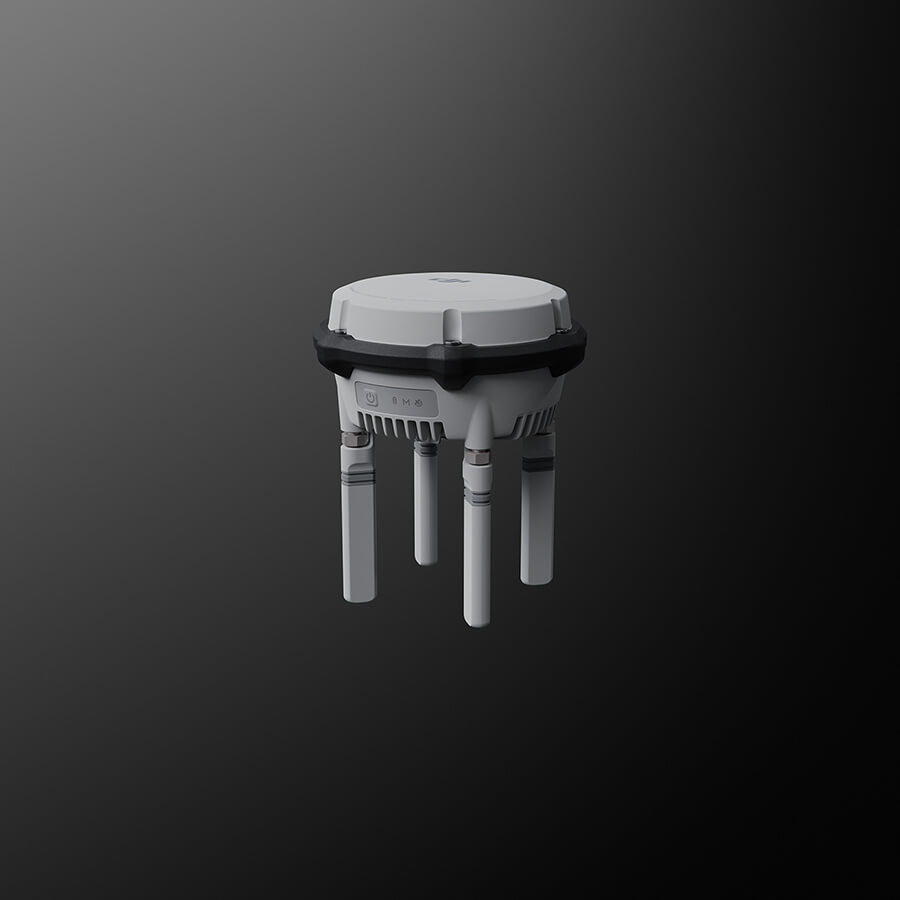

D-RTK 3 Multifunctional Station
Provides centimeter-level Positioning and relay functions, effectively enhancing the operation Range, making it efficient and reliable.
-

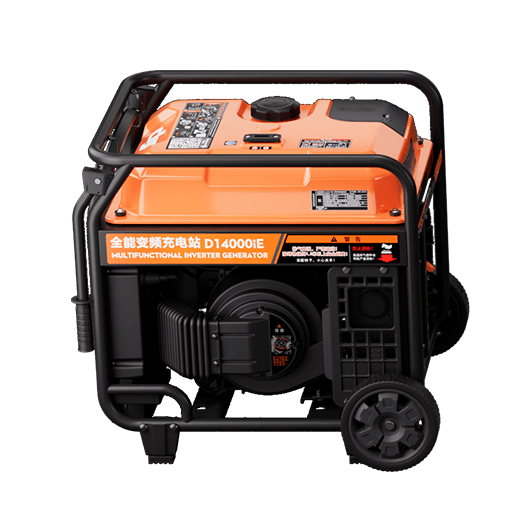

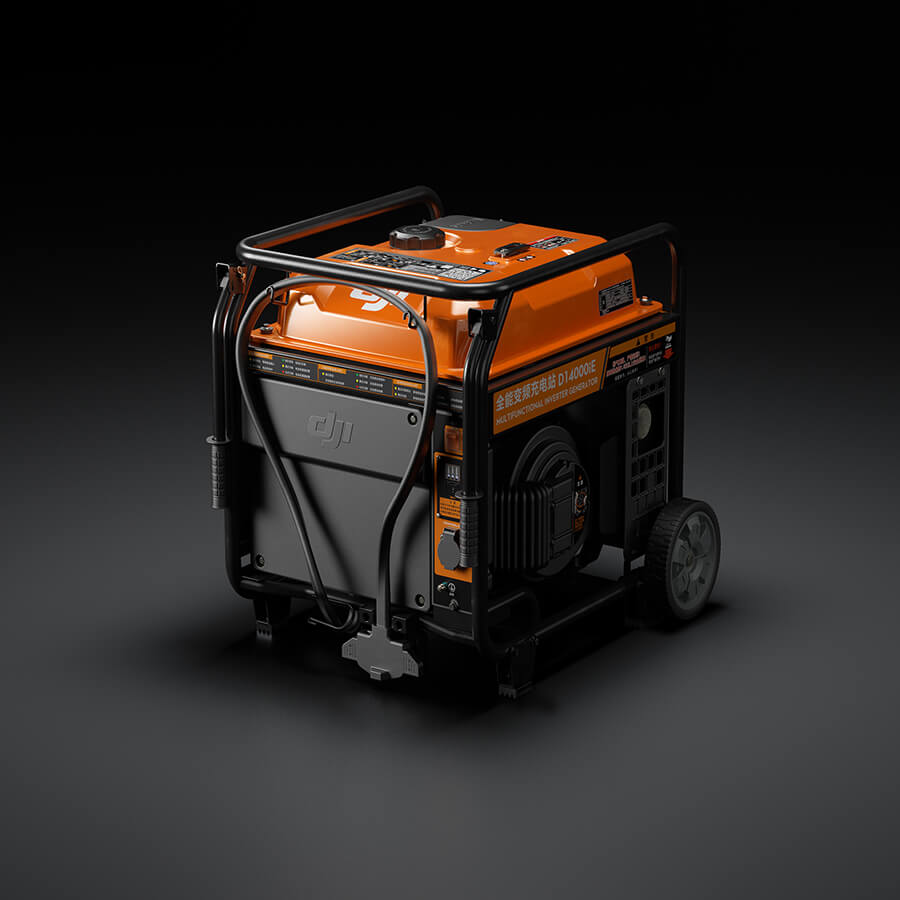

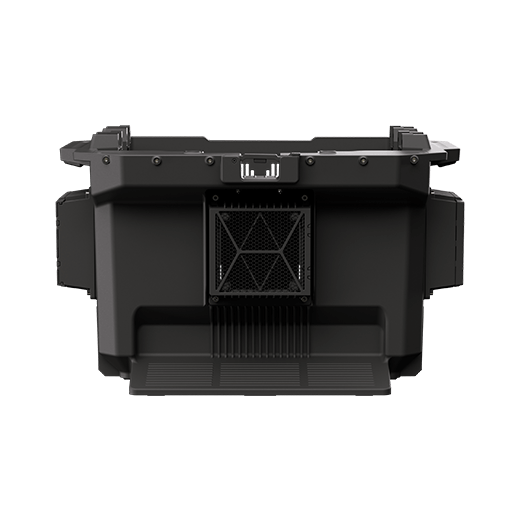

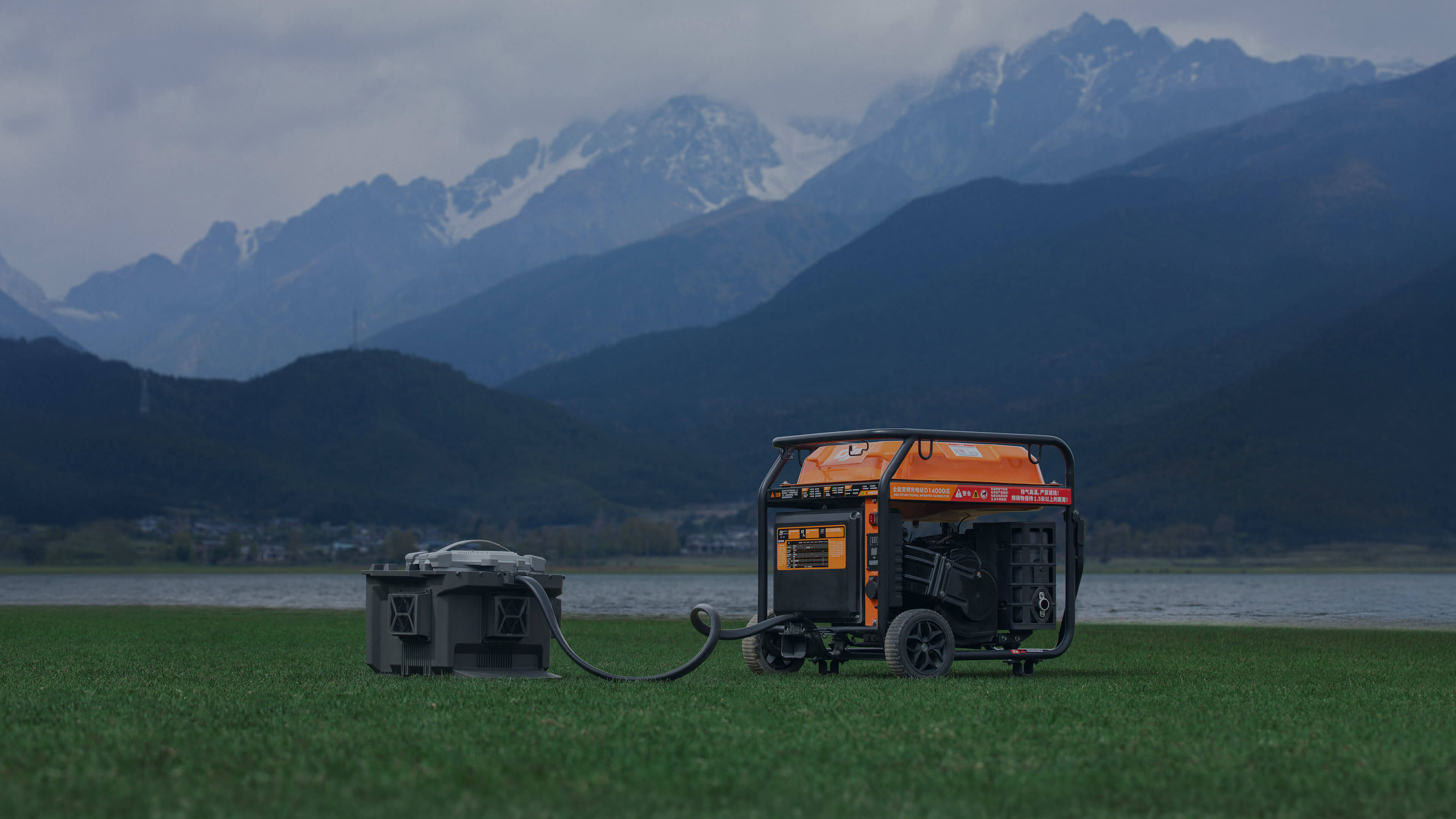

D14000iE Multifunctional Inverter Generator
1,500 W AC output, and maximum support for 11,500 W Fast charge[16].
-

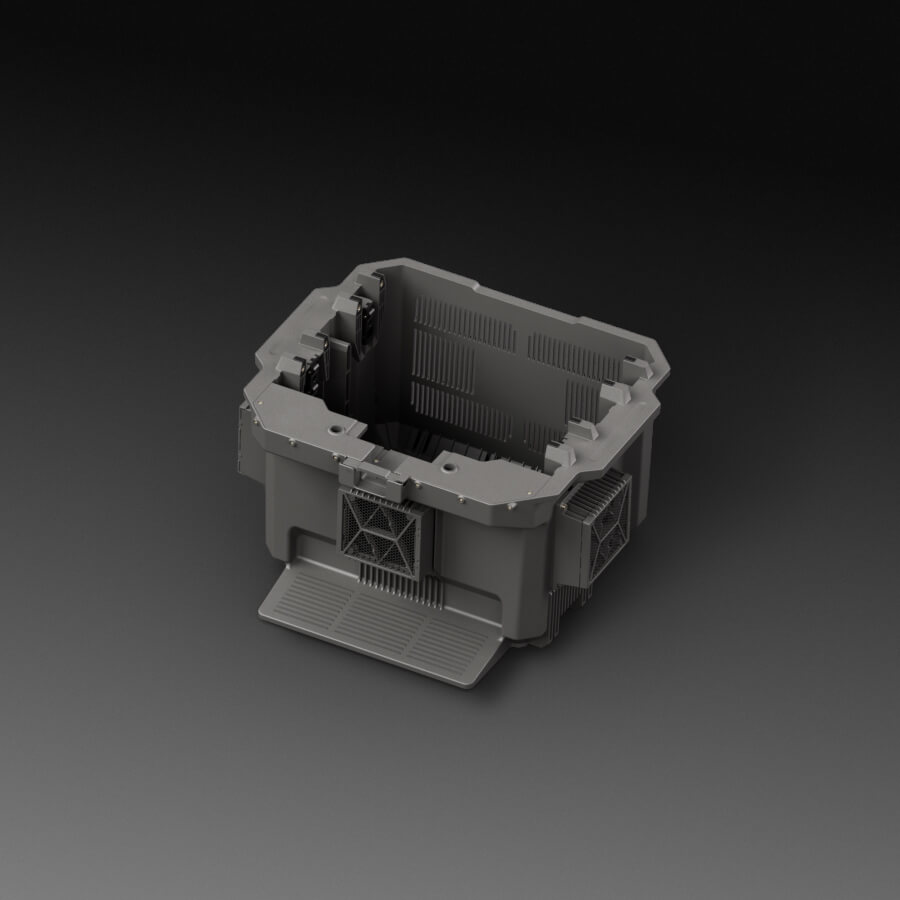

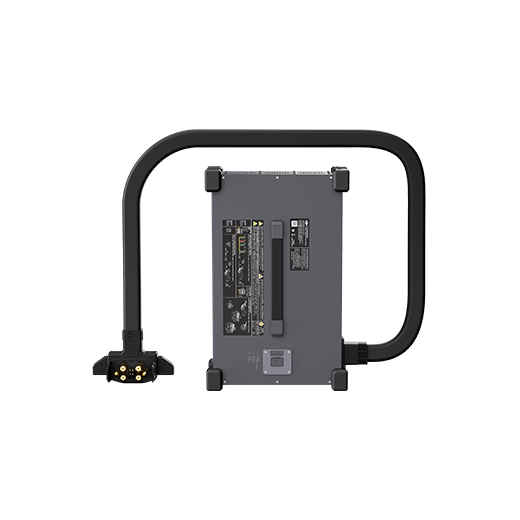

DB2160 Air-Cooled Heat Sink
During charging, quickly dissipates battery heat, achieving efficient cooling, ensuring stable battery operation and extended lifespan.
-

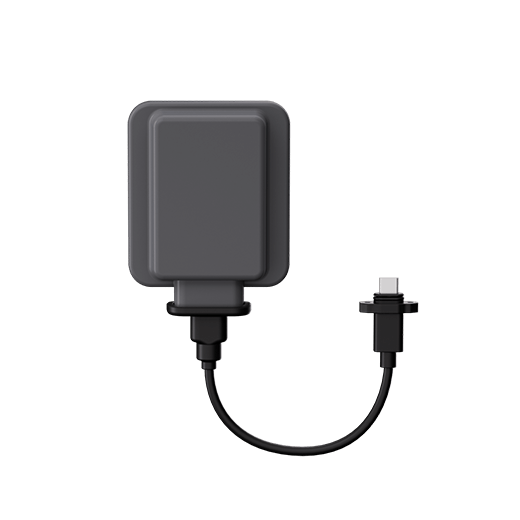

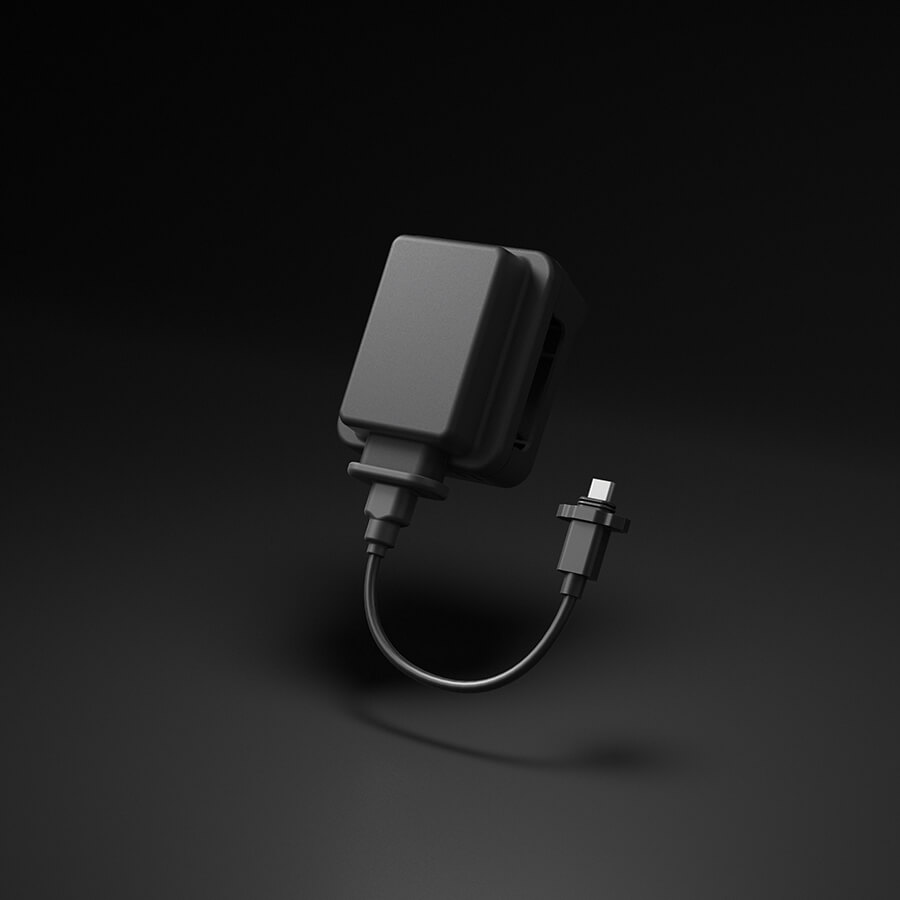

DJI Cellular Dongle Kit
DJI Cellular Dongle Kit, can be mounted to aircraft or remote controller, providing 4G network access service.
-

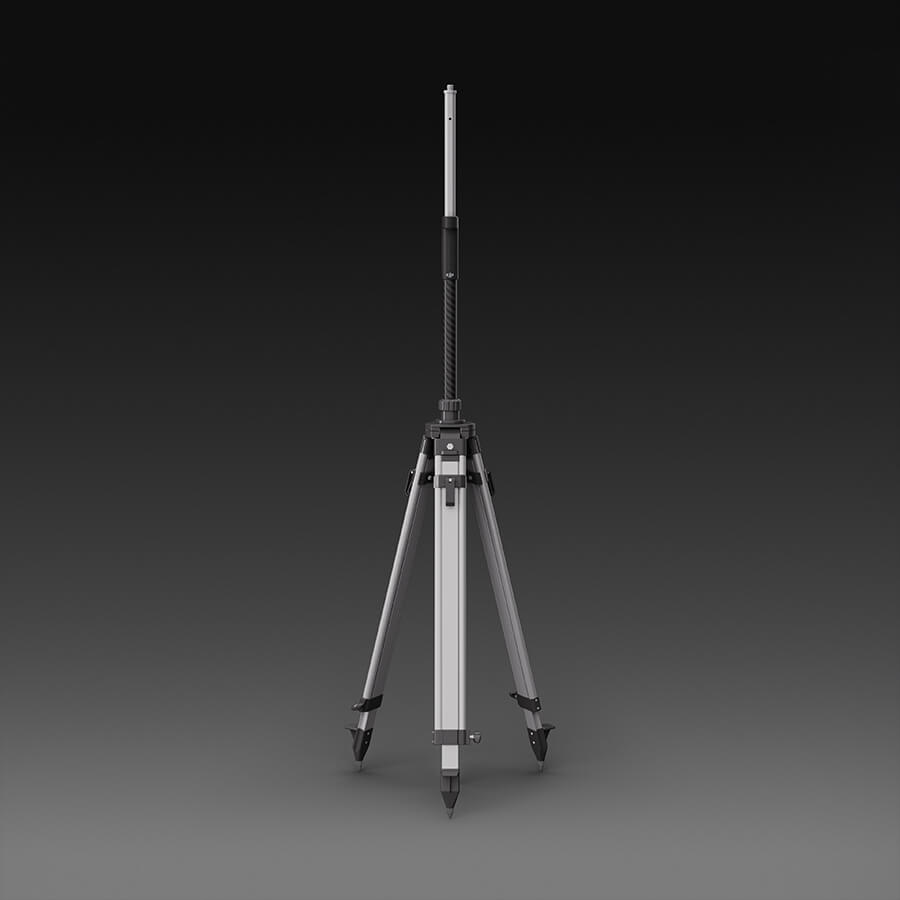

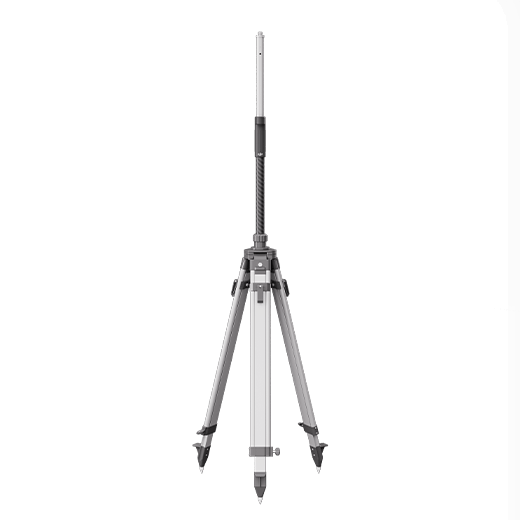

D-RTK 3 Survey Pole and Tripod Kit
Easy mounting and securing of the D-RTK 3 Multifunctional Station.
-
C12000 Intelligent Power Supply
Supports Tri-phase power input, adaptive voltage, compatible with universal generators, and offers a maximum charging power of 12,000 W[17].
-

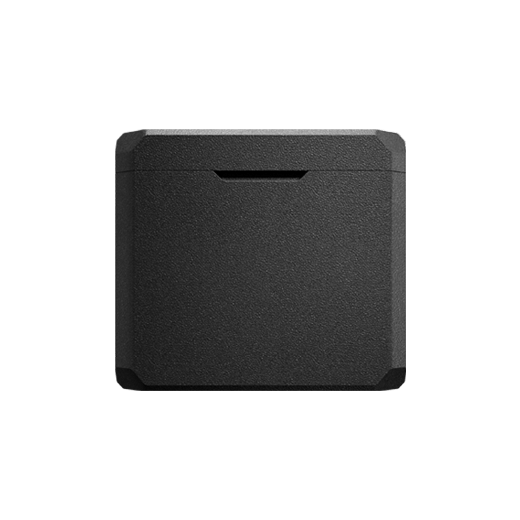

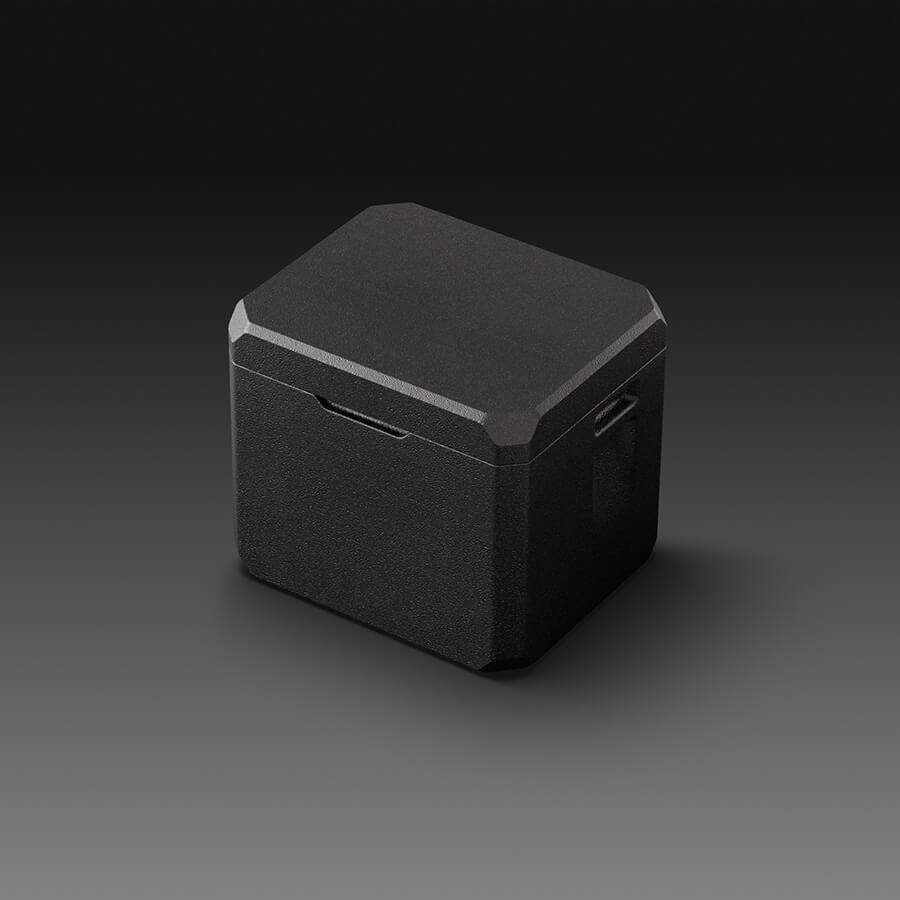

DJI Battery Incubator
Fast heating, improving operational performance in low temperatures.
-

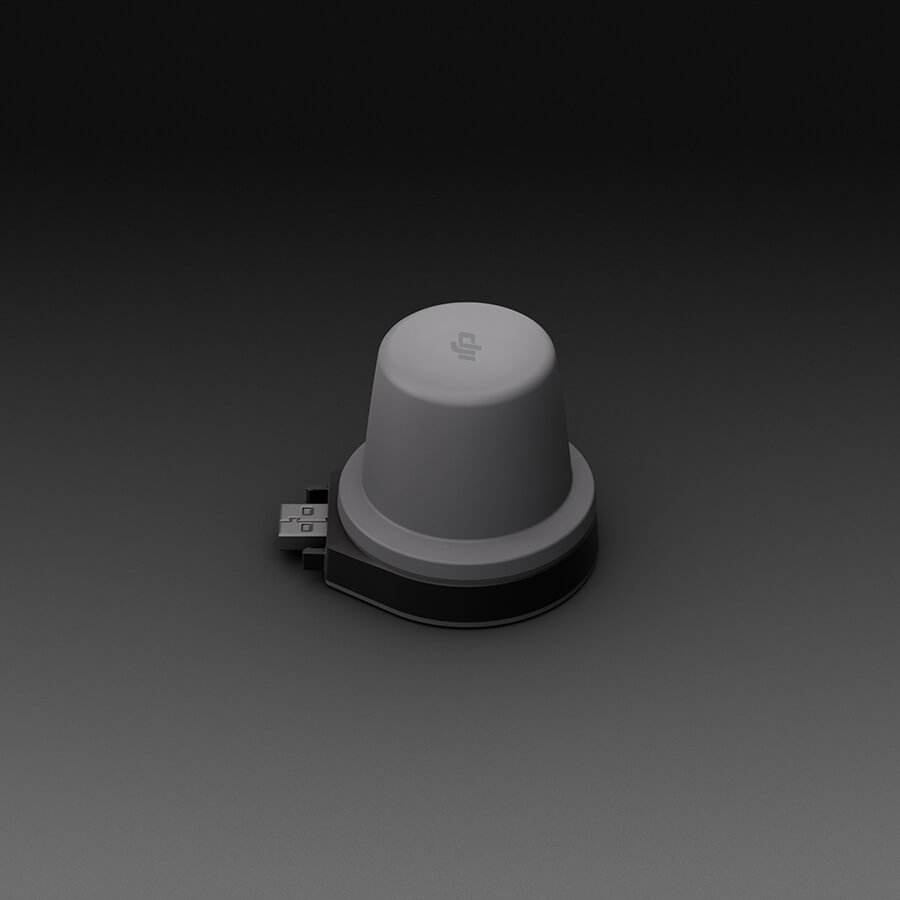

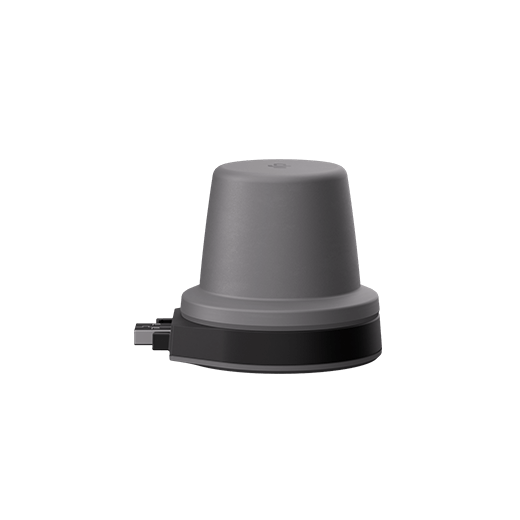

RTK Dongle
Used in conjunction with the remote controller, it utilizes the remote controller for precise Positioning point marking.
DB2160 Intelligent Flight Battery
C10000 Intelligent Power Supply
DJI RC Plus 2
D-RTK 3 Multifunctional Station
D14000iE Multifunctional Inverter Generator
DB2160 Air-Cooled Heat Sink
DJI Cellular Dongle Kit
D-RTK 3 Survey Pole and Tripod Kit
C12000 Intelligent Power Supply
DJI Battery Incubator
RTK Dongle
* Please check and strictly abide by local laws and regulations before flying.
** All data was tested with a production model DJI FC100 in a controlled environment. Actual experience may vary depending on the environment, usage, and firmware version.
*** All videos and images on this page were shot in strict compliance with relevant local laws and regulations. Please check and strictly abide by local laws and regulations before flying.
**** DJI FC100 must be activated by using the DJI Delivery app.
***** The appearance of this product is subject to the actual shipment.
1. The 170kg maximum takeoff weight is the performance specification of the drone.Please follow local laws and regulations in actual use. In the following countries and regions the maximum takeoff weight is restricted to 150kg: Brazil, Japan,Australia, Turkey,Saudi Arabia.
2. This data is obtained from DJI FC100 equipped with fully charged new battery at a takeoff weight of 149.9kg, flying at a constant optimal speed to 0% charge in a windless environment at 25 ° C at sea level. Results may vary depending on the environment, actual use, and firmware version. Always pay attention to app reminders during actual operation.
3. Single-axis system efficiency (including propellers, motor, and ESC) compared to DJI FC30. Test conclusions may vary under different test conditions.
4. Supports active control of opening and closing through APP or button.
5. Wireless recharge requires the hook to be tightened into place. Wireless charging power limit is 45 W, and it can also be charged through Type-C, with a max charging power limit of 30 W. It is recommended to charge below the limit value.
6. The upward rotation radar, rear single-panel radar, and downward single-panel radar are all millimeter-wave radars.
7. The effective sensing range and its ability to avoid and bypass obstacles will vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles. Downward sensing is used to assist in Terrain Following flight and altitude stabilization, while other directions assist with obstacle avoidance. AR safety assistance features serve only as supplementary hints, operators must confirm the surrounding environment's safety during operation.
Note 1. Downward sensing assists in Terrain Following flight. If the bottom collides with obstacles, it is considered user responsibility. Note 2. Due to limitations in safety system performance, the aircraft cannot automatically avoid moving objects, and accidents of this nature will be attributed to user responsibility. Note 3. Cargo obstacle avoidance is only for auxiliary flight; if the cargo and lifting caboe collide with an obstacle, it is the customer's responsibility.
8.The ADS‑B receiver is only included with the Flagship Winch System.
9. AR safety assistance features serve only as supplementary hints; operators must confirm the surrounding environment's safety during operation. Detection performance of sensors such as quad-vision and FPV cameras may vary depending on the ambient light, rain, fog, and the material, position, shape, and other properties of the obstacles.
10. When DJI FC100 flies in a 25° C windless environment at sea level with a full payload, the lowest height for opening the parachute is 100 m and the terminal descent speed 7 m/s.
11. An altitude of 6,000 meters is the maximum safe altitude for DJI FC100 flying without payload.
12. During takeoff and landing, DJI FC100 can resist a maximum wind speed of 12 m/s.
13. The protection rating is not permanent and may decline due to aging and wear caused by long-term use. The protection rating does not apply to the propulsion system. After a flight in rain, it is recommended to keep it idling on the ground for 1 minute to prevent corrosion or rust to afflict the propulsion system (precipitation of more than 24.9 mm within 24 hours).
14. Measured with estimated solar radiation of 960 W/m 2. Long-term exposure to high temperatures may shorten the service life of certain components.
15. The battery heating function requires the additional purchase of a battery Incubator.
16. The output power of the charging station may be affected by altitude and fuel quality.
17. Affected by the local power grid environment, such as distance, wire material, and wire gauge, the output power may vary.
18. The second remote controller is optional and needs to be purchased separately.
19. The 20 km transmission distance is measured with FCC compliance. The maximum Video Transmission communication distance with SRRC compliance is 12 km. The maximum Video Transmission communication distance with CE/MIC compliance is 10 km. The above data shows the farthest communication range for one-way, non-return flights under each standard, and is measured outdoors in an open, interference-free environment. During your flight, please pay attention to RTH reminder on the DJI Delivery App.
20. Optional accessory. Need to purchase separately. Operating frequency aries among countries and regions. Refer to the local laws and regulations for more information.
21. Optional accessory. Need to purchase separately.
22. When connecting an external payload, you need to purchase the DJI FC100 PSDK Connection Cable Combo separately.
23. This feature will be supported via a future Firmware Update. Please stay tuned for relevant firmware update in the remote controller and on the official website.
